Medical Grade Silicone Tubing: Features, Types, and Procurement Guide

Medical grade silicone tubing is a fundamental component in a vast array of medical devices and healthcare applications. Its unique combination of properties—biocompatibility, flexibility, durability, and chemical inertness—makes it an indispensable material for fluid transfer, drainage, and insulation within the human body and in critical medical equipment. For medical device manufacturers, healthcare facilities, and procurement professionals, understanding the features, types, and proper procurement of medical grade silicone tubing is crucial for ensuring patient safety, device efficacy, and regulatory compliance.

Essential Features of Medical Grade Silicone Tubing

Medical grade silicone tubing is specifically engineered to meet the stringent requirements of the healthcare industry. Its key features include:

• Superior Biocompatibility: This is the most critical feature. Medical grade silicone is non-toxic, non-allergenic, and does not react with human tissues or bodily fluids. It minimizes the risk of adverse reactions, making it safe for direct and prolonged patient contact, including implantable applications. Compliance with standards like USP Class VI and ISO 10993 is essential.

• Excellent Flexibility and Elasticity: Silicone tubing maintains its flexibility across a wide temperature range, from very low to very high. This allows for easy handling, reduces kinking, and ensures consistent fluid flow. Its elasticity enables it to return to its original shape after compression or stretching.

• High Temperature Resistance: Medical silicone tubing can withstand extreme temperatures, typically from -50°C to +200°C (and even higher for specialized formulations). This property is vital for applications requiring sterilization via autoclaving (steam sterilization) or for use in high-temperature medical equipment.

• Chemical Inertness: Silicone is highly resistant to a wide range of chemicals, including acids, bases, and many solvents. This ensures that the tubing does not leach substances into fluids or degrade when exposed to various medical solutions or cleaning agents.

• Smooth, Non-Porous Surface: The smooth inner and outer surfaces of silicone tubing resist the adhesion of proteins, cells, and bacteria, which helps to reduce the risk of biofilm formation and contamination. This is particularly important for applications involving blood or other bodily fluids.

• Transparency: Most medical silicone tubing is translucent or transparent, allowing healthcare professionals to visually monitor fluid flow, detect air bubbles, or identify blockages, enhancing patient safety.

• Durability and Longevity: Silicone tubing is resistant to aging, UV light, and ozone, ensuring a long service life even under demanding conditions. It can withstand repeated sterilization cycles without significant degradation of its physical properties.

Types of Medical Grade Silicone Tubing

Medical grade silicone tubing comes in various forms, each designed for specific applications:

1. Peristaltic Pump Tubing

Designed for use in peristaltic pumps, this tubing is highly resilient and can withstand repeated compression and release cycles without losing its shape or integrity. It is commonly used in infusion pumps, dialysis machines, and other fluid transfer systems where precise and consistent flow rates are critical.

2. Catheter Tubing

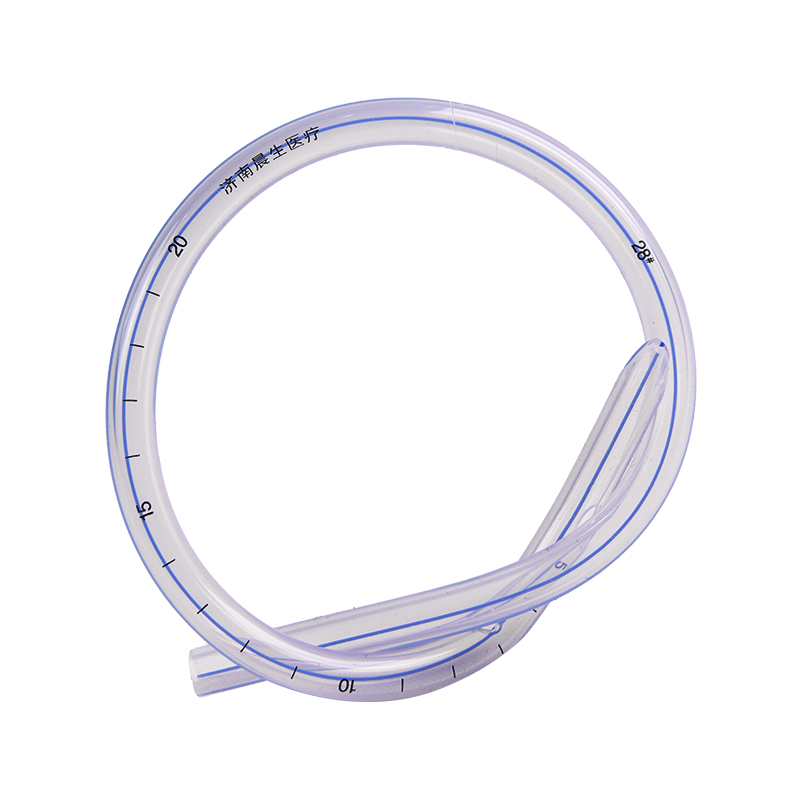

Used as the main body of various catheters, such as urinary catheters, drainage catheters, and intravenous catheters. Its softness, flexibility, and biocompatibility are crucial for patient comfort and minimizing tissue trauma during insertion and indwelling.

3. General Fluid Transfer Tubing

This versatile tubing is used for a wide range of applications involving the transfer of sterile fluids, medications, and nutrients. It can be found in IV sets, feeding tubes, and laboratory equipment.

4. Reinforced Tubing

Some silicone tubing is reinforced with materials like polyester braiding or stainless steel wire to enhance its pressure resistance, kink resistance, or burst strength. This type is used in high-pressure applications or where extra durability is required.

5. Multi-Lumen Tubing

Featuring multiple distinct channels within a single tube, multi-lumen tubing allows for the simultaneous delivery or withdrawal of different fluids, or for integrating sensing capabilities. This is common in complex medical devices and diagnostic tools.

Procurement Guide: Key Considerations for Buyers

Selecting the right medical grade silicone tubing requires a systematic approach. Here are key considerations for procurement professionals:

1. Certifications and Compliance

• Medical Grade Designation: Always confirm that the tubing is explicitly certified as medical grade and meets relevant international standards (e.g., USP Class VI, ISO 10993 for biocompatibility).

• Quality Management System: Verify that the manufacturer operates under a certified quality management system, such as ISO 13485 (Medical Devices Quality Management System), which ensures consistent quality and regulatory compliance.

• Regulatory Approvals: For specific markets, ensure the product has necessary regulatory approvals (e.g., FDA clearance in the US, CE marking in Europe).

2. Material Specifications

• Raw Material Purity: Inquire about the source and purity of the silicone raw material. High-purity silicone is essential for medical applications.

• Physical Properties: Specify required durometer (hardness), tensile strength, elongation, and tear strength based on your application needs.

• Dimensional Accuracy: Precise inner diameter (ID), outer diameter (OD), and wall thickness are critical for consistent performance, especially in fluid transfer systems.

3. Manufacturing Environment and Process

• Cleanroom Production: For sterile applications, ensure the tubing is manufactured in a certified cleanroom environment (e.g., ISO Class 7 or 8) to prevent contamination.

• Manufacturing Process: Understand the manufacturer's extrusion and curing processes. Precision extrusion ensures uniform dimensions and smooth surfaces.

• Traceability: A robust traceability system from raw material to finished product is vital for quality control and recall management.

4. Sterilization Compatibility and Validation

• Validated Sterilization Methods: Confirm that the tubing is compatible with your chosen sterilization method (e.g., steam, EtO, gamma) and that the manufacturer can provide validation data.

• Post-Sterilization Performance: Ensure the tubing maintains its critical properties (flexibility, strength, transparency) after sterilization.

5. Supplier Capabilities and Support

• Experience and Expertise: Choose a supplier with a proven track record and deep expertise in medical silicone rubber products.

• Customization Services: If your application requires unique specifications, select a supplier capable of providing custom tubing solutions.

• Technical Support: A responsive technical support team can provide valuable assistance with material selection, design optimization, and troubleshooting.

• Supply Chain Reliability: Assess the supplier's ability to ensure consistent supply and on-time delivery.

Jinan Chensheng Medical: Your Trusted Source for Medical Grade Silicone Tubing

At Jinan Chensheng Medical Silicone Rubber Product Co., Ltd., we are a leading specialized enterprise dedicated to the production of high-quality medical macromolecular products, including a comprehensive range of medical grade silicone tubing. With our roots as the first assigned enterprise in the domestic market by the former National Medicine Management Bureau, and leveraging the organic silicone expertise of Shandong University, we bring unparalleled experience and manufacturing prowess to the medical device industry.

Our Manufacturing and Product Advantages:

• Uncompromising Quality: Our medical grade silicone tubing is manufactured from the purest raw materials, rigorously tested to meet and exceed international standards such as USP Class VI and ISO 10993 for biocompatibility.

• Precision Extrusion: We employ advanced precision extrusion technology to ensure highly accurate dimensions, consistent wall thickness, and exceptionally smooth surfaces, critical for optimal fluid flow and reduced risk of contamination.

• Certified Production Environment: Our state-of-the-art facilities include certified cleanrooms, ensuring that our tubing is produced in a controlled environment, minimizing particulate and microbial contamination.

• Extensive Product Range: We offer a wide variety of medical silicone tubing, including specialized options for peristaltic pumps, various catheters, and general fluid transfer, available in multiple sizes and configurations.

• Customization Expertise: We excel in providing tailored silicone tubing solutions, working closely with manufacturers to meet unique design specifications and performance requirements.

• Robust Quality Control: Our comprehensive quality management system, supported by eight registered certificates for medical apparatus and instruments, ensures that every batch of tubing undergoes stringent quality checks, guaranteeing reliability and safety.

By partnering with Jinan Chensheng Medical, you gain access to superior medical grade silicone tubing that ensures the highest levels of patient safety and device performance. We are committed to being your reliable supplier for all your medical silicone needs.

Conclusion

Medical grade silicone tubing is a vital component in modern healthcare, and its proper selection is paramount. By carefully considering biocompatibility, material properties, manufacturing quality, and supplier capabilities, procurement professionals can ensure they acquire products that meet the highest standards of safety and efficacy. Jinan Chensheng Medical stands as a trusted leader in this field, offering a comprehensive range of high-quality, certified medical grade silicone tubing backed by decades of expertise and a commitment to excellence. We invite you to contact us today to discuss your specific requirements and discover how our superior products can benefit your medical applications. We look forward to your inquiry.
