Product Description
Product Features
◆To be produced in cleaning room
◆Pharmaceutic grade platinum cured silicone tube, low dissolved matter
◆Working temperature scope：-60°C -- 200°C
◆Can be sterilized by high temperature and high pressure\EO\gamma ray
◆Complete control from raw material to products leaving factory, and batch can
be traced
◆No animal derived ingredients
◆Customized
Typical application fields
◆Sealing\sampling and filling in biopharmaceutical and biotechnolgy industries ◆Laboratory
Physical and mechanical properties
Properties | Test Standards | Indicators |
Hardness: SHOREA hardness tester by 3 seconds | GB/T531.1-2008 | 60±5 |
Tensile strength MPa | GB/T528-2009 | ≥9 |
Elongation at break 100% | GB/T528-2009 | ≥400 |
Tear strength KN/m | GB/T529-2008 | ≥40 |
Density | 1.08±0.02 |
Biocompatibility Verification
Verification Items | Regulation Standards |
Precipitate report | US.FDA.CFR.177.1580（2600） |

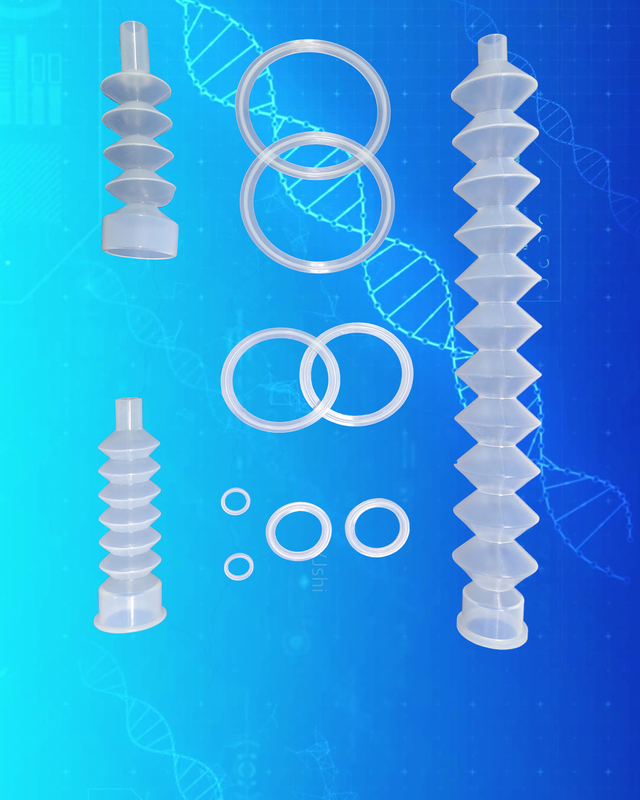

Silicone gasket series（sealing）
Product Code | Specification | ID(mm) | OD(mm) | Thickness(mm) | |||
sup-csparts-25s | DN25 | 15.6 | 21.4 | 4.5 | |||
sup-csparts-50s | DN50 | 35.7 | 49.8 | 1.6 | |||
sup-csparts-25 | TC25 | 16.2 | 21.8 | 1.8 | |||
sup-csparts-50 | TC50 | 34.8 | 50.4 | 1.8 | |||
sup-csparts-91 | DN91(3") | 73.1 | 90.5 | 1.8 | |||
sup-csparts-120 | DN120(4") | 99 | 119 | 1.8 | |||
