Medical Silicone Extrusion vs. Injection Molding vs. Compression Molding: Which Process Is Right for Your Component?

One of the most consequential decisions in medical silicone component development happens before a single gram of silicone is processed: the choice of manufacturing process. Extrusion, liquid silicone rubber (LSR) injection molding, and high-consistency rubber (HCR) compression molding are the three primary processes used to manufacture medical silicone components — and each has a fundamentally different capability profile, cost structure, tooling requirement, and geometric constraint set.

Choosing the wrong process does not just affect unit cost. It affects dimensional capability, surface quality, flash management, cycle time, scalability, and ultimately whether your component can be manufactured to specification at all. A component designed for compression molding may be impossible to hold to tolerance in that process — but trivial to manufacture by LSR injection molding. A simple tubing profile that costs $0.08/meter by extrusion would cost $2.50/unit by injection molding. These are not marginal differences — they determine whether a product is commercially viable.

This guide gives medical device engineers, product managers, and procurement professionals the complete decision framework for selecting the right silicone manufacturing process — covering process mechanics, geometric capabilities, tolerance benchmarks, tooling economics, volume thresholds, and the specific component characteristics that make each process the clear choice.

Part 1: The Three Processes — Mechanics and Fundamental Characteristics

Process 1: Extrusion

How it works: Silicone compound (HCR — high-consistency rubber, solid at room temperature) is fed into a screw extruder, heated and pressurized, and forced through a precision die that defines the cross-sectional profile. The extrudate exits the die as a continuous length, passes through a vulcanization oven (hot air or infrared) to cure, and is then cut to length, coiled, or spooled.

What it produces: Any component with a constant cross-section along its length — tubing, profiles, cords, strips, channels, and multi-lumen geometries. Extrusion cannot produce features that vary along the length (flanges, end caps, molded tips) without secondary operations.

Key process parameters:

• Die design defines the cross-sectional geometry

• Extrusion speed and oven temperature/length control cure state

• Laser micrometer monitors OD/ID in real time during production

• Pull speed controls dimensional consistency

Fundamental constraint: Extrusion produces continuous constant cross-sections only. Any geometry that changes along the length — a flange, a taper, a molded end feature — requires either a secondary molding operation or a different process entirely.

Process 2: Liquid Silicone Rubber (LSR) Injection Molding

How it works: Two-component liquid silicone (Part A: base polymer + platinum catalyst; Part B: base polymer + crosslinker) is metered, mixed at a 1:1 ratio, and injected under pressure into a precision-machined steel mold. The mold is heated (typically 160–200°C), curing the silicone in 15–60 seconds. The mold opens and the part is ejected or demolded.

What it produces: Discrete three-dimensional parts of virtually any geometry — provided the geometry can be demolded (no undercuts that prevent part removal without collapsible cores or side actions). LSR injection molding is the most geometrically capable silicone process.

Key process parameters:

• Mold temperature and injection pressure control fill and cure

• Shot size precision (±0.1% of shot weight) controls part weight and dimensional consistency

• Cycle time: 15–90 seconds depending on part size and wall thickness

• Multi-cavity molds (4, 8, 16, 32 cavities) enable high-volume production

Fundamental constraint:Tooling cost. LSR molds are precision-machined hardened steel tools — typically $8,000–$80,000+ depending on complexity and cavity count. This cost is justified at medium to high volumes but is prohibitive for low-volume or prototype applications.

Process 3: High-Consistency Rubber (HCR) Compression Molding

How it works: Pre-weighed slugs or preforms of HCR silicone compound are placed manually into an open mold cavity. The mold closes under hydraulic pressure (typically 50–200 bar), compressing the silicone and forcing it to fill the cavity. Heat (150–180°C) cures the silicone over 3–10 minutes. The mold opens and the part is removed — typically with flash (thin silicone film at the parting line) that requires manual trimming.

What it produces: Discrete three-dimensional parts — similar geometric range to LSR injection molding, but with less dimensional precision and more flash. Compression molding is the oldest and simplest silicone molding process.

Key process parameters:

• Preform weight and placement affect fill and flash

• Mold temperature and cure time control cure state

• Compression pressure affects dimensional precision

• Manual preform placement and part removal — labor-intensive

Fundamental constraint:Flash and dimensional variability. Because the mold is loaded manually and closed under pressure, flash at the parting line is inherent to the process. Flash removal (deflashing) adds labor cost and time. Dimensional precision is lower than LSR injection molding because preform weight and placement variability affect fill.

Part 2: Side-by-Side Process Comparison

Part 3: Extrusion — When It Is the Right Choice

Ideal Applications

Extrusion is the correct process when your component has a constant cross-section along its length and is used in lengths greater than a few centimeters. This covers:

• Medical tubing (single-lumen, multi-lumen, co-extruded)

• Peristaltic pump segments

• Catheter shafts (before tip forming)

• Drainage tube bodies (before fenestration and tip forming)

• Sealing cords and O-ring cord stock

• Silicone profiles (D-section, T-section, custom cross-sections for sealing applications)

• Radiopaque-striped tubing (co-extrusion of base compound with radiopaque-loaded compound)

• Multi-lumen tubing (2-lumen, 3-lumen, 4-lumen — for catheters, infusion sets)

Extrusion Tolerance Capabilities

Dimensional precision in extrusion is primarily controlled by die design, compound consistency, and real-time laser micrometer feedback. Achievable tolerances:

Ultra-precision tolerances require closed-loop laser micrometer control, temperature-controlled extrusion environment, and premium compound consistency. They are achievable but command a price premium.

Extrusion Economics

Tooling cost: Extrusion dies are relatively inexpensive — $500–$5,000 for standard tubing dies, $1,500–$8,000 for complex multi-lumen or profile dies. This is 10–20× less expensive than LSR injection molds.

Unit cost: Extrusion is the lowest-cost silicone manufacturing process per unit of material. For standard medical tubing (e.g., 6mm OD × 4mm ID), unit costs are typically:

• $0.05–0.15/meter at 1,000m/month

• $0.03–0.08/meter at 10,000m/month

• $0.02–0.05/meter at 100,000m/month

Lead time: Extrusion dies can be manufactured in 2–4 weeks. First production samples are typically available 3–6 weeks from drawing confirmation — significantly faster than LSR injection mold development.

Extrusion Limitations — When to Choose a Different Process

Extrusion cannot produce:

• End features (flanges, caps, tips) — require secondary molding

• Varying cross-sections along the length — impossible by extrusion

• Closed geometries (bellows, bags, pouches) — require molding

• Tight 3D tolerances on features other than OD/ID — extrusion controls cross-section only

• Very short discrete parts (< 5mm length) — cutting precision and handling become limiting

Part 4: LSR Injection Molding — When It Is the Right Choice

Ideal Applications

LSR injection molding is the correct process when your component requires:

• Complex three-dimensional geometry that cannot be produced by extrusion

• High dimensional precision on 3D features (±0.05–0.10mm)

• Flash-free or minimal-flash finished parts (critical for medical device assembly)

• High production volumes where cycle time and automation justify tooling investment

• Consistent part weight (LSR metering precision: ±0.1% shot weight)

• Overmolding onto plastic or metal substrates (LSR bonds directly to many substrates)

Typical LSR injection-molded medical components:

• Injection port septa and valve membranes

• Respiratory mask seals and cushions

• Hearing aid ear tips and domes

• Implantable device components (pacemaker lead seals, cochlear implant components)

• Neonatal and pediatric device components (pacifier nipples, mask seals)

• Drug delivery device components (inhaler mouthpiece seals, auto-injector components)

• Wearable device skin-contact seals and gaskets

• Surgical instrument handle grips and seals

LSR Tooling — Understanding the Investment

LSR mold tooling is the primary barrier to entry for this process. Understanding tooling cost drivers helps you make informed decisions:

Typical LSR tooling cost ranges:

Tooling ownership: At Chensheng Medical, all tooling is customer-owned — you own the mold, it is stored at our facility at no charge, and you can transfer it to another manufacturer if needed. We do not charge ongoing tooling storage fees.

LSR Volume Economics — The Break-Even Analysis

LSR tooling investment is justified when production volume is sufficient to amortize the tooling cost over an acceptable number of units. The break-even volume depends on the unit cost difference between LSR and compression molding:

Example calculation:

At volumes above ~112,000 units, LSR injection molding has lower total cost despite higher tooling investment. Below this volume, compression molding is more economical.

LSR Design Rules — Geometric Constraints

To achieve the full capability of LSR injection molding, component geometry must follow these design rules:

Wall thickness:

• Minimum: 0.3mm (thin-wall LSR is achievable but requires specialized tooling and process)

• Maximum: 6mm (thicker walls require longer cure time and risk void formation)

• Recommended: 0.8–3.0mm for most medical components

• Uniform wall thickness preferred — abrupt thickness transitions cause fill and cure problems

Draft angles:

• Minimum 1° draft on all surfaces parallel to the mold opening direction

• 2–3° preferred for textured surfaces

• Zero draft possible on short features (<5mm) with appropriate mold surface finish

Undercuts:

• Internal undercuts require collapsible cores — add $2,000–$8,000 to tooling cost

• External undercuts require side actions — add $3,000–$10,000 per action

• Flexible silicone can accommodate small undercuts (< 15% of feature dimension) by elastic demolding

Gate location:

• LSR gate marks are small (0.3–0.8mm diameter) but visible

• Gate location must be specified — place in non-critical areas (hidden surfaces, non-sealing faces)

• Multi-cavity molds use hot runner systems that eliminate gate marks in some designs

Parting line:

• Parting line location affects flash location and dimensional precision

• Place parting line away from critical sealing surfaces

• Flash-free tooling (zero-flash or micro-flash) is achievable with precision-ground parting surfaces — adds 15–25% to tooling cost

Part 5: HCR Compression Molding — When It Is the Right Choice

Ideal Applications

Compression molding is the correct process when:

• Volume is low to medium (hundreds to tens of thousands per year) and LSR tooling investment is not justified

• Part geometry is relatively simple — no thin walls, no complex undercuts, no precision sealing surfaces

• Prototype or bridge production is needed while LSR tooling is being developed

• Large parts that would require very large (expensive) LSR molds

• Custom compounds that are not available in LSR form — some specialty compounds (high-temperature, electrically conductive, fluorosilicone) are only available as HCR

Typical compression-molded medical silicone components:

• Simple gaskets and O-rings

• Bulb reservoirs for drainage systems (simple geometry)

• Ear plugs and hearing protection

• Large seals and diaphragms (>100mm diameter)

• Prototype parts for design validation

• Low-volume custom components

Compression Molding Tolerance Reality

The fundamental limitation of compression molding is dimensional variability from three sources:

1. Preform weight variation: Manual preform preparation introduces ±2–5% weight variation. Since silicone is incompressible, excess material becomes flash — but insufficient material causes short shots (incomplete fill). This weight variation translates directly to dimensional variation in the finished part.

2. Preform placement variation: Manual placement of the preform in the cavity affects how the material flows during compression. Off-center placement causes asymmetric fill and dimensional variation.

3. Flash thickness variation: Flash at the parting line is inherent to compression molding. Flash thickness variation (typically 0.05–0.20mm) affects the overall part dimension perpendicular to the parting line.

Achievable tolerances in compression molding:

Best-case tolerances require precision preform preparation, controlled preform placement, and precision-ground mold parting surfaces.

Flash Management — The Hidden Cost of Compression Molding

Flash is silicone that flows into the parting line gap during compression. It must be removed before the part can be used. Flash removal methods:

Manual trimming: Operator uses scissors or trimming tool to remove flash. Labor-intensive, introduces dimensional variation, and risks cutting into the part. Acceptable for simple parts with accessible flash.

Cryogenic deflashing: Parts are tumbled in a cryogenic chamber (−70°C) that embrittles the flash, allowing it to be removed by tumbling without affecting the part. Produces clean, consistent results but adds cost ($0.05–0.20/part) and requires batch processing.

Laser deflashing: Laser ablates flash without contacting the part. Highest precision, lowest risk of part damage, but highest equipment cost. Typically used for precision parts where manual or cryogenic deflashing is inadequate.

Flash cost impact: For compression-molded parts, deflashing typically adds $0.05–0.30/part to unit cost — a significant factor in the total cost comparison with LSR injection molding.

Part 6: Secondary Operations — Extending Process Capability

Many medical silicone components require secondary operations that extend the capability of the primary manufacturing process. Understanding secondary operations is essential for accurate cost estimation and lead time planning.

Secondary Operations for Extruded Components

Secondary Operations for Molded Components

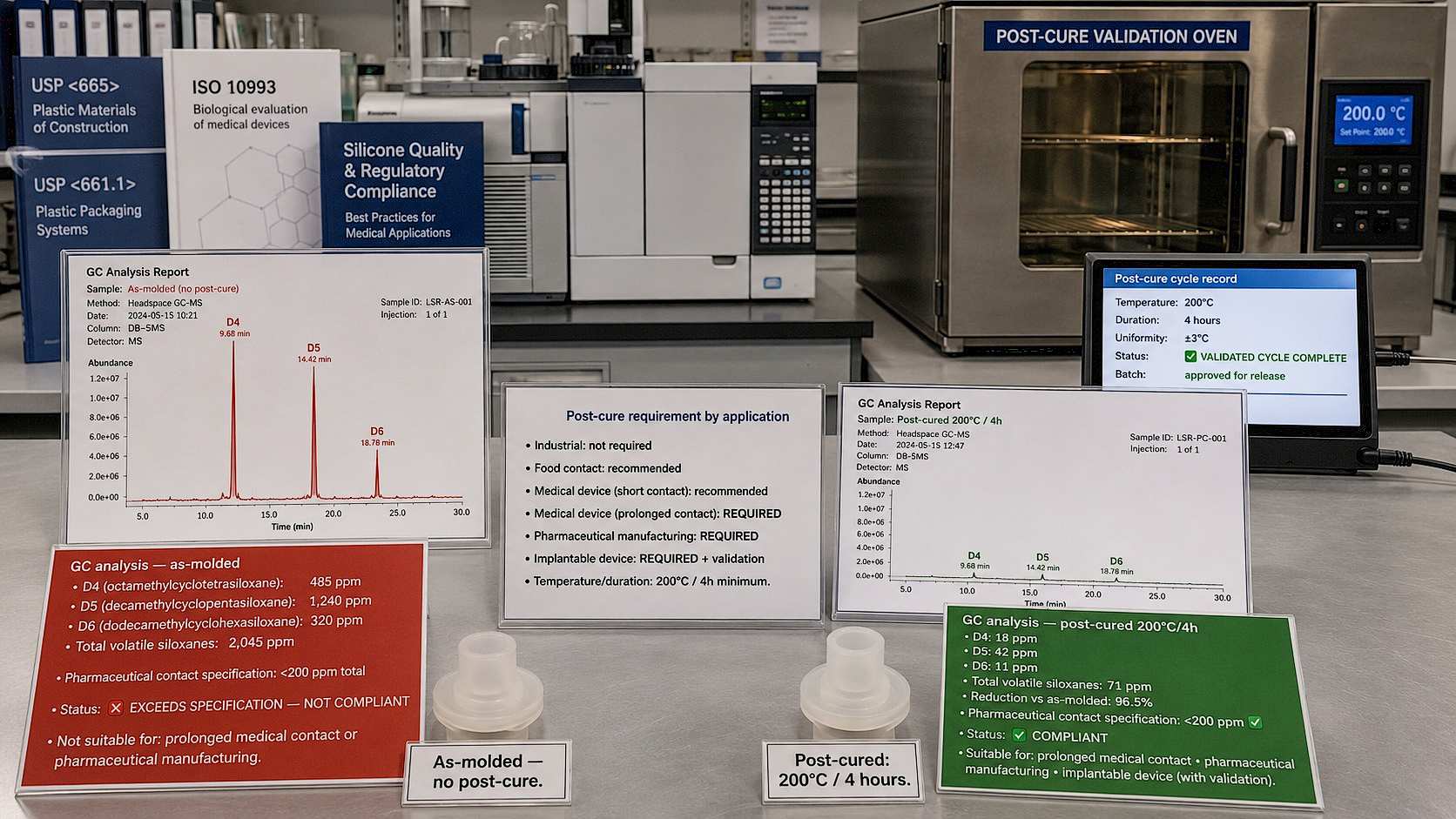

Post-Cure — Why It Matters for Medical and Pharmaceutical Applications

Post-cure (secondary cure at elevated temperature, typically 200°C for 2–4 hours) is a critical step for medical and pharmaceutical silicone components:

Purpose of post-cure:

1. Reduce volatile siloxanes (D4, D5, D6): Low-molecular-weight cyclic siloxanes are present in all silicone compounds and are released during primary cure. Post-cure at 200°C volatilizes these compounds, reducing their concentration in the finished part by 80–95%.

2. Complete crosslinking: Post-cure drives the crosslinking reaction to completion, improving mechanical properties (tensile strength, compression set) and dimensional stability.

3. Reduce extractables: For pharmaceutical applications, post-cure is essential for achieving ultra-low extractables specifications.

Post-cure requirement by application:

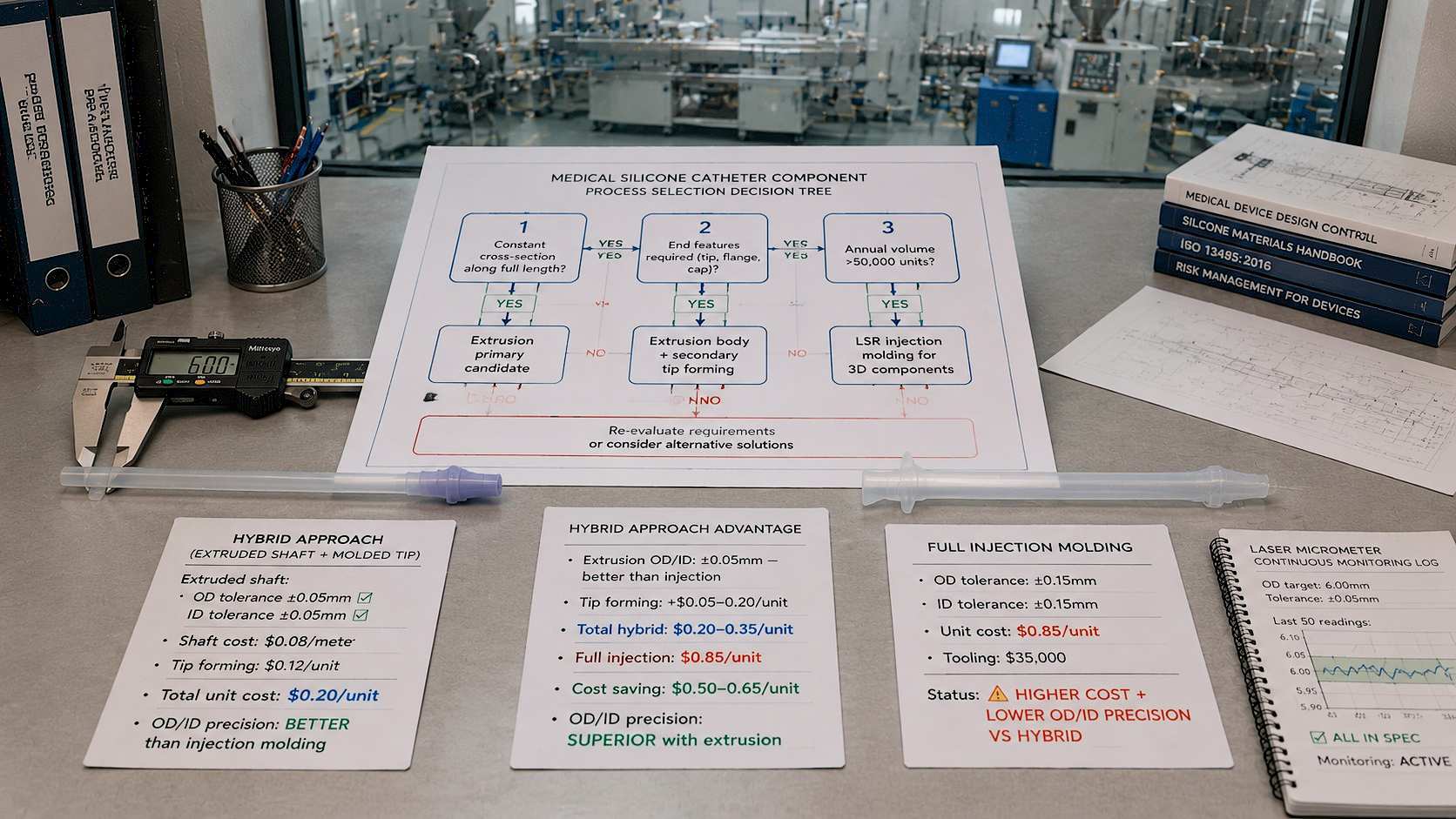

Part 7: The Process Selection Decision Framework

Use this decision framework to select the correct manufacturing process for your medical silicone component. Work through the questions in sequence — the first question that eliminates a process is determinative.

Step 1: Geometry Screen

Question: Does your component have a constant cross-section along its entire length?

• Yes → Extrusion is the primary candidate. Proceed to Step 2.

• No → Extrusion is eliminated. Proceed to Step 3 (molding process selection).

Step 2: Extrusion Feasibility (for constant cross-section components)

Question: Does your component require any features that vary along its length (end caps, flanges, tips, varying wall thickness)?

• No → Extrusion is the correct process. Specify die geometry and proceed to supplier selection.

• Yes → Extrusion for the body + secondary molding for end features. Evaluate cost vs. single-process molding.

Step 3: Molding Process Selection (for 3D components)

Work through the following decision tree:

Annualvolume>50,000units?├──YES→LSRinjectionmolding(toolingcostjustifiedbyvolumeeconomics)│Exception:verylargeparts(>150mm)→compressionmoldingmaybemoreeconomical└──NO→Annualvolume>5,000units?├──YES→CompareLSRvs.compressionmoldingontotalcostbasis│LSR if:tighttolerancesrequired,flashunacceptable,automationneeded│Compression if:simplegeometry,tolerances±0.20mmacceptable└──NO→Compressionmolding(lowtoolingcost,lowvolume)Exception:tighttolerancesorflash-freerequired→LSRprototypetool

Step 4: Tolerance Requirement Screen

Question: What is the tightest dimensional tolerance required on any feature of your component?

Step 5: Flash Acceptability Screen

Question: Is flash acceptable on the finished component?

• Flash unacceptable (sealing surfaces, fluid-path components, implantable components) → LSR injection molding with flash-free tooling

• Flash acceptable with deflashing (non-critical surfaces, simple gaskets) → Compression molding acceptable

• Flash acceptable as-molded (non-critical, non-patient-contact) → Compression molding, no deflashing

Step 6: Compound Requirement Screen

Question: Is your compound available in LSR (liquid) form?

• Yes (standard medical silicone) → LSR injection molding is available

• No (specialty compound: fluorosilicone, high-temperature, electrically conductive) → HCR compression molding or transfer molding required

Step 7: Timeline Screen

Question: What is your time-to-first-sample requirement?

Part 8: Cost Modeling — Total Cost of Ownership by Process

Unit cost comparisons between processes are misleading without accounting for tooling amortization, secondary operations, scrap rate, and quality costs. This section provides a total cost of ownership framework.

Total Cost Formula

Total Cost per Unit=Unit Manufacturing Cost+Tooling CostLifetime Volume+Secondary Operations Cost+Quality CostTotal Cost per Unit=Unit Manufacturing Cost+Lifetime VolumeTooling Cost+Secondary Operations Cost+Quality Cost

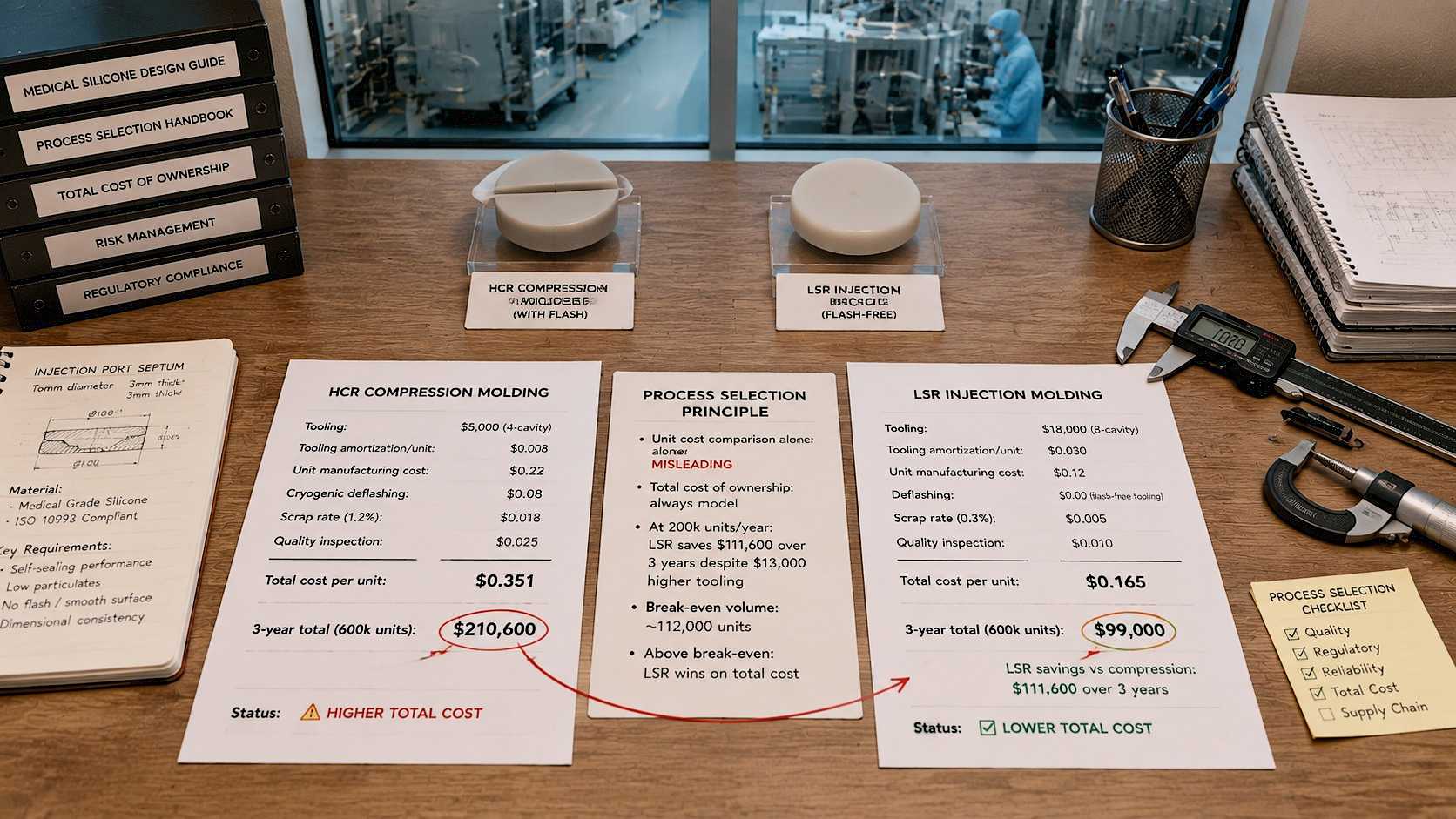

Worked Example: Injection Port Septum (10mm diameter × 3mm thick)

Scenario: 200,000 units/year, 3-year product life = 600,000 units lifetime

At 200,000 units/year, LSR injection molding saves $111,600 over 3 years despite $13,000 higher tooling investment.

Break-Even Volume Chart

The break-even volume between LSR and compression molding depends on the specific part and tooling costs, but as a general guideline:

Part 9: Process-Specific Quality Considerations for Medical Devices

Extrusion Quality Controls

LSR Injection Molding Quality Controls

Compression Molding Quality Controls

For a complete guide to quality system requirements and supplier audit protocols for medical silicone manufacturers, see: How to Choose a Reliable Medical Silicone Manufacturer in China

Part 10: Chensheng Medical Manufacturing Capabilities

Jinan Chensheng Medical Technology Co., Ltd. operates all three primary silicone manufacturing processes under one roof — enabling us to recommend the optimal process for each component and execute complete product development from prototype to production.

Our Process Capabilities

Extrusion:

• Single-lumen, multi-lumen (up to 4 lumens), and co-extrusion capability

• OD range: 0.5mm to 50mm

• Dimensional tolerance: ±0.05mm (precision grade)

• Continuous laser micrometer monitoring on all medical lines

• ISO Class 7 cleanroom extrusion for IV-grade and pharmaceutical-grade tubing

• Radiopaque stripe co-extrusion capability

LSR Injection Molding:

• Shot size range: 0.5g to 500g

• Mold cavity capability: up to 32 cavities

• Tolerance capability: ±0.05mm on critical features

• Flash-free tooling available

• Overmolding onto plastic and metal substrates

• ISO Class 7 cleanroom molding for sterile components

HCR Compression Molding:

• Press capacity: 50–400 ton

• Part size range: 5mm to 400mm

• Specialty compounds: fluorosilicone, high-temperature (up to 300°C), electrically conductive

• Cryogenic deflashing capability

Secondary Operations:

• Precision cutting, fenestration, tip forming

• Balloon bonding, connector bonding

• Post-cure ovens (200°C, validated)

• EtO sterilization (via qualified contract sterilizer)

• Gamma sterilization (via qualified contract sterilizer)

• Cleanroom packaging (Tyvek peel pouch, blister)

• Private label printing

→ Submit Your Component Drawing for Process Recommendation→ Request a Design for Manufacturability (DFM) Review→ Discuss Your OEM Development Project

Frequently Asked Questions (FAQ)

Q1: My component has a constant cross-section but also needs a molded tip. Should I use extrusion or injection molding?

A: Use extrusion for the body and a secondary tip-forming operation for the end feature. This is the standard approach for catheters and drainage tubes — the shaft is extruded to precise dimensional tolerances, then the tip is formed by a secondary molding step (either compression molding the tip onto the extruded shaft, or using a dedicated tip-forming die). This hybrid approach is almost always more economical than injection molding the entire component as a single piece, because extrusion holds OD/ID tolerances more precisely and at lower cost than injection molding for long, constant cross-section geometries. The secondary tip-forming operation adds $0.05–0.20/unit depending on complexity — typically far less than the cost premium of full injection molding.

Q2: What is the minimum wall thickness achievable in LSR injection molding?

A: The practical minimum wall thickness for LSR injection molding in medical applications is approximately 0.3–0.5mm. Thinner walls (0.1–0.3mm) are achievable with specialized tooling and process optimization, but require very precise mold machining, optimized gate design, and careful process control — adding significant tooling cost and development time. For most medical device applications, walls thinner than 0.5mm are not recommended unless the application specifically requires it (e.g., thin membrane valves). If your design requires walls thinner than 0.5mm, discuss the geometry with our applications engineering team before finalizing the design — there may be design modifications that achieve the functional requirement with a more manufacturable wall thickness.

Q3: Can I start with compression molding for prototypes and switch to LSR injection molding for production?

A: Yes — this is a common and recommended approach. Compression molding prototype tooling costs $2,000–$6,000 and can be ready in 4–6 weeks, allowing you to validate the design with physical parts before committing to LSR production tooling. However, be aware that compression-molded prototypes will not perfectly represent LSR production parts — dimensional precision, surface finish, and flash location will differ. For design validation testing (functional testing, fit verification), compression-molded prototypes are usually adequate. For regulatory validation testing (biocompatibility, sterilization validation, shelf life), use parts from the production process (LSR injection molding) — regulatory submissions require testing on production-representative samples.

Q4: How do I specify tolerances for a medical silicone component — what is realistic to expect from each process?

A: Start with your functional requirement — what is the minimum tolerance needed for the component to function correctly in your device? Then check whether your target process can achieve that tolerance. As a practical guide: for sealing surfaces and fluid-path dimensions, ±0.10mm is achievable by LSR injection molding and is sufficient for most sealing applications. For pump segments and precision flow control, ±0.05mm is required and achievable by both precision extrusion and LSR injection molding. For non-critical dimensions (overall part envelope, non-sealing surfaces), ±0.20–0.30mm is acceptable and achievable by compression molding. Avoid specifying tighter tolerances than functionally necessary — every 0.05mm tightening of tolerance adds tooling cost, inspection cost, and scrap rate. Our applications engineering team can review your drawing and flag any tolerances that are tighter than functionally necessary or beyond process capability.

Q5: What is the typical scrap rate for each process, and how does it affect total cost?

A: Typical scrap rates for medical silicone manufacturing: extrusion 0.5–1.5% (primarily from startup and dimensional excursions); LSR injection molding 0.2–0.8% (primarily short shots and visual defects); compression molding 1.0–3.0% (primarily short shots, flash damage during deflashing, and dimensional rejects). Scrap rate has a significant impact on total cost at high volumes — a 1% scrap rate difference at 1,000,000 units/year at $0.20/unit = $2,000/year in direct scrap cost, plus the indirect costs of inspection, rework, and production disruption. For high-volume medical device components, scrap rate should be a key supplier evaluation criterion — request actual scrap rate data from production lots, not just a claimed capability.

Q6: We need a component made from fluorosilicone (FVMQ) for chemical resistance. Which process is available?

A: Fluorosilicone (FVMQ) is available primarily as HCR compound — LSR-grade fluorosilicone is available from some compound suppliers but is significantly more expensive and less widely available than standard LSR. For most fluorosilicone applications, compression molding or transfer molding is the practical process choice. Transfer molding (a variant of compression molding where the compound is preheated and transferred into the mold under pressure) provides better dimensional consistency than standard compression molding for fluorosilicone components. If your application requires fluorosilicone, contact our applications engineering team to discuss the specific chemical resistance requirement — in some cases, a platinum-cured standard silicone with appropriate compound selection can meet the chemical resistance requirement without the cost and process limitations of fluorosilicone.

Q7: How long does LSR injection mold tooling last, and what is the re-tooling cost?

A: LSR injection molds machined from hardened tool steel (H13, hardness 48–52 HRC) typically last 500,000–1,000,000+ shots before requiring significant maintenance or replacement. P20 pre-hardened steel molds last 100,000–300,000 shots. Mold life depends heavily on: part geometry (sharp corners accelerate wear), silicone compound (filled compounds are more abrasive), and maintenance practices (regular cleaning, lubrication of moving components). Typical mold maintenance costs: $500–$2,000 per year for routine maintenance (polishing, cleaning, minor repairs). Re-tooling cost (replacing worn cavity inserts) is typically 40–60% of original tooling cost. At Chensheng Medical, we track shot count for all customer molds and proactively notify customers when molds approach the recommended maintenance interval.

Related Articles:

• How to Choose Medical Grade Silicone Tubing: A Complete Specification and Sourcing Guide

• Silicone Shore A Hardness Explained: How to Select the Right Durometer for Your Medical Application

• Platinum-Cured vs. Peroxide-Cured Silicone: Which Is Better for Your Application?

• Silicone Catheter Types Explained: Foley, Nelaton, Suction, and Drainage Specification Guide

• Silicone Drainage Tubes and Closed Wound Drainage Systems: Clinical Requirements and Sourcing Guide

• Silicone Components for Infusion and IV Therapy Devices: Compliance Requirements and Supplier Selection

• How to Choose a Reliable Medical Silicone Manufacturer in China
