20x22mm
Custom
Product Description
When flexibility is as critical as flow rate, our 20x22mm silicone tubing delivers exceptional performance. Engineered with a slim yet resilient 1mm wall, this tube offers outstanding agility and a tight bend radius unmatched by standard or heavy-duty alternatives. It is the ideal choice for navigating crowded equipment, intricate systems, and applications requiring gentle, low-pressure handling of fluids and air.
Exceptional Flexibility: The 1mm wall construction provides superior pliability, allowing the tube to be easily routed around obstacles and through tight spaces without kinking or restricting flow.
Maximum Flow Capacity: A large, unobstructed 20mm inner diameter ensures high-volume throughput, making it perfect for rapid fluid transfer, draining, and air circulation applications.
Lightweight & Easy to Install: Its minimal wall thickness results in a significantly lighter tube, reducing structural load and simplifying handling and installation.
Ideal for Peristaltic Pumps: The combination of a large bore and excellent flexibility makes it a prime candidate for use in large-scale, low-pressure peristaltic pump applications.
Purity You Can Trust: Manufactured from 100% platinum-cured silicone, it is completely non-toxic, odorless, and meets FDA and LFGB certifications, ensuring the integrity of your sensitive media.

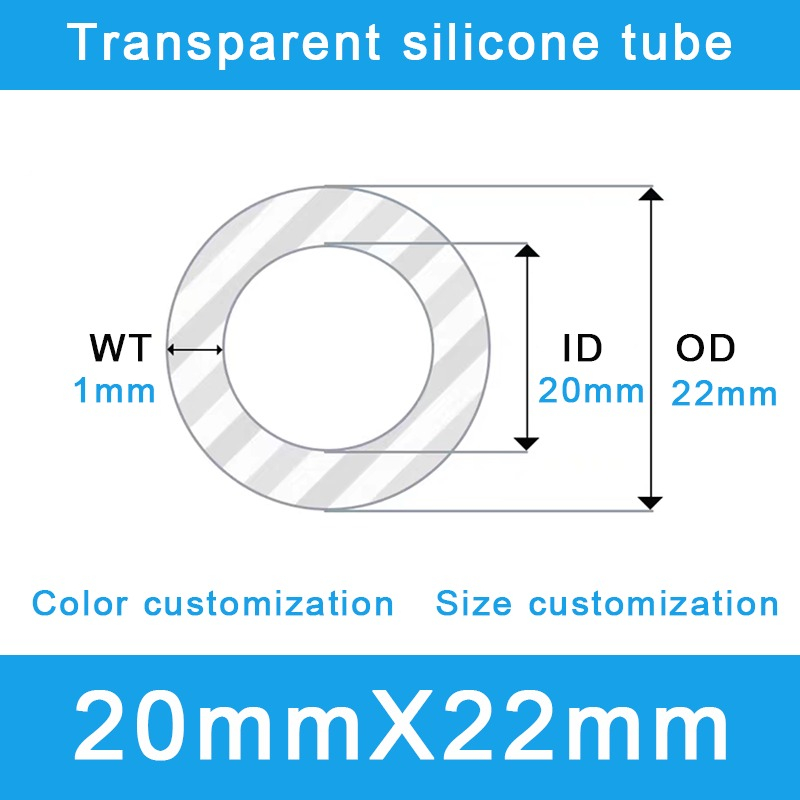

Attribute | Specification |
Inner Diameter (ID) | 20 mm |
Outer Diameter (OD) | 22 mm |
Wall Thickness | 1 mm |
Material Compound | 100% Platinum-Cured Silicone |
Color | Standard High-Clarity Transparent (Custom colors available) |
Hardness (Shore A) | 55±5A (Engineered for flexibility) |
Operating Temperature | -60°C to 200°C (-76°F to 392°F) |
Certifications | FDA, LFGB, RoHS, REACH |
Perfectly suited for applications where agility is paramount:
Low-Pressure Fluid & Beverage Transfer: An excellent choice for beverage dispensing, home brewing (kegerators, siphoning), water features, and general laboratory fluid transfer.
Large Peristaltic Pumps: Provides the durability and flexibility needed for high-volume dosing and transfer in food processing and chemical handling.
Flexible Protective Sleeving: Offers lightweight insulation and protection for wire harnesses, cable bundles, and sensor assemblies that require freedom of movement.
HVAC & Air Ducting: Ideal for low-pressure air and fume ducting in custom enclosures and equipment where flexible routing is essential.
Drainage & Gravity-Fed Systems: The high-flow capacity and flexibility make it perfect for custom drain lines in machinery, aquariums, and hydroponic systems.
JINAN CHENSHENG is a premier Chinese OEM/ODM manufacturer dedicated to producing high-quality, application-specific silicone components. We partner with innovators and engineers to bring their designs to life.
The JINAN CHENSHENG Difference:
Tailored Engineering: We understand that one size does not fit all. We can precisely adjust hardness, color, transparency, and dimensions to create the perfect flexible tubing for your project.
Direct Factory Partnership: Collaborate directly with our technical team and benefit from competitive wholesale pricing. Our streamlined process saves you time and development costs.
Certified Quality, Guaranteed: Our ISO 9001-certified manufacturing process ensures every product is made to the highest standards of quality, consistency, and purity.
Reliable & Scalable Production: From initial prototypes to large-volume orders, we are your dependable supply chain partner, committed to quality and on-time delivery.
Embrace flexibility without compromise. Contact JINAN CHENSHENG to discuss your custom requirements and receive a competitive quote.
This product is sold by the meter and is supplied in a continuous length.
Performance Advisory: This tubing is specifically designed for low-pressure, gravity-fed, or peristaltic pump applications. It is NOT suitable for use with positive pressure systems or any vacuum applications, as it is not designed to resist collapse or expansion.
Feature Notice: The primary feature of this tube is its high flexibility. If your application requires pressure resistance or rigidity, please consider our heavy-duty (2mm or 2.5mm wall) alternatives.
