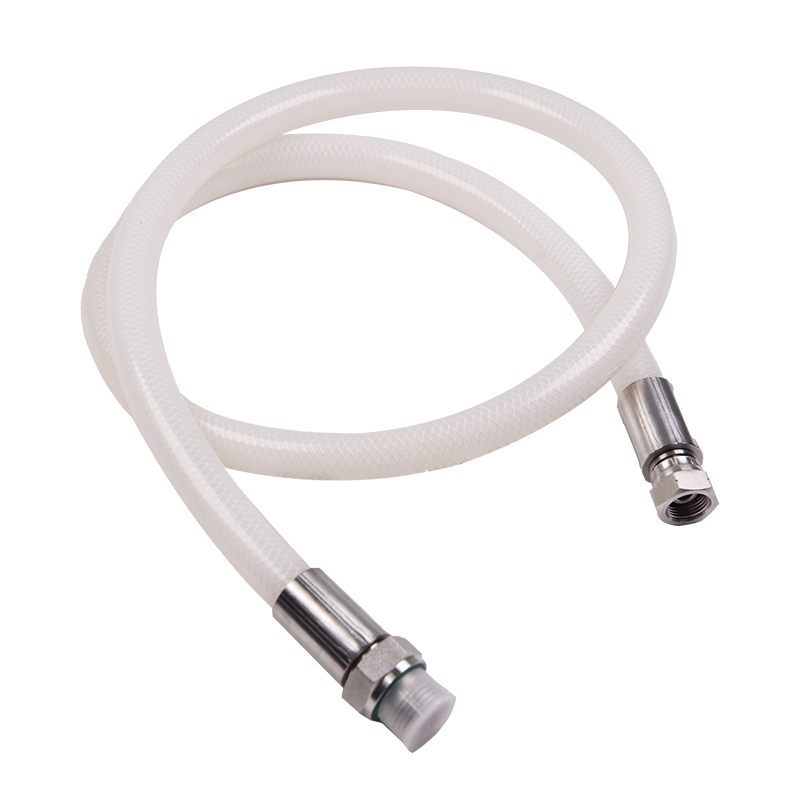

Polyester Braided Silicone Tubing
Chensheng
Product Description
Jinan Chensheng Medical Silicone Rubber Product Co., Ltd. offers polyester braided silicone tubing engineered for demanding fluid transfer applications in the biopharmaceutical, food, and beverage industries. Our braided silicone hoses combine flexibility, clarity, and high-pressure resistance, making them ideal for both critical and routine processes.
Polyester Fiber Reinforcement: The inner polyester braided thread significantly enhances compressive stability and pressure tolerance, supporting both working and burst pressures as required by industry standards.
Certified Cleanroom Manufacturing: Produced in a certified cleanroom environment to meet stringent hygiene and contamination control requirements.
Regulatory Compliance: Fully compliant with USP Class VI and FDA CFR 177.2600, ensuring safety for pharmaceutical and food contact applications.
Transparent & Smooth Walls: Both inner and outer walls are transparent and smooth, allowing easy visual inspection and minimizing fluid retention or contamination.
Customizable Specifications: Available in various inner diameters (ID), outer diameters (OD), wall thicknesses, and standard lengths (20 meters/package). Custom sizes are available upon request.
Sterilization Compatibility: Suitable for CIP (Clean-In-Place) and SIP (Sterilize-In-Place) cleaning methods, ensuring long-term usability and safety.
ID (mm) | OD (mm) | Wall Thickness (mm) | Working Pressure (MPa) | Burst Pressure (MPa) | Minimum Bending Radius (mm) |
1.6 | 6.9 | 2.65 | 1.38 | 5.34 | 4 |
3.2 | 9.0 | 2.90 | 1.31 | 5.34 | 4 |
4.8 | 11.4 | 3.30 | 1.28 | 5.17 | 6 |
6.4 | 12.7 | 3.15 | 1.24 | 5.02 | 9.5 |
9.5 | 15.9 | 3.20 | 1.24 | 5.05 | 12.7 |
12.7 | 19.1 | 3.20 | 1.21 | 4.83 | 15.9 |
15.9 | 22.2 | 3.15 | 1.21 | 4.83 | 19.1 |
19.1 | 25.4 | 3.15 | 1.21 | 4.83 | 22.2 |
22.2 | 28.6 | 3.20 | 0.86 | 3.45 | 25.4 |
25.4 | 31.8 | 3.20 | 0.72 | 2.93 | 28.6 |
31.8 | 38.1 | 3.15 | 0.69 | 2.76 | 31.8 |
38.1 | 44.5 | 3.20 | 0.52 | 2.10 | 34 |
Sterile fluid transfer in biopharmaceutical processes
Food and beverage production lines
Laboratory and pilot-scale fluid handling
High-pressure transfer and dispensing systems
With years of expertise in silicone rubber manufacturing, we deliver high-quality, reliable braided silicone tubing to global customers. Our products offer complete traceability, competitive pricing, and technical support, making us a trusted partner for OEMs and end-users alike.
For detailed catalogs, technical support, or a custom quote, visit https://www.jngxj.cn or contact our sales team directly.
