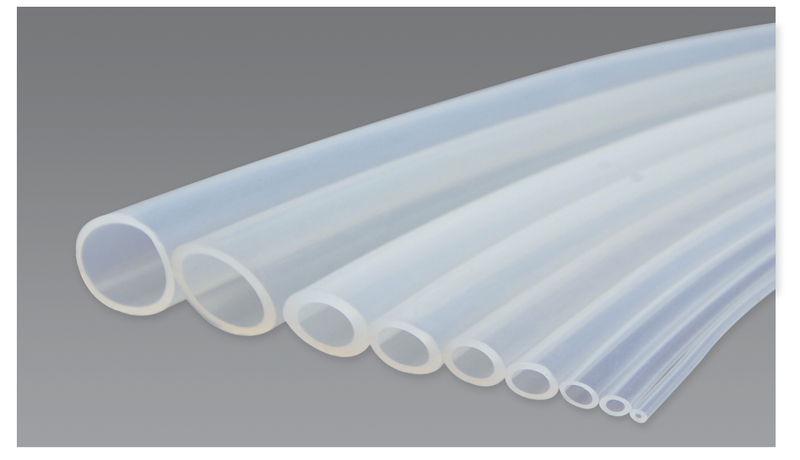

Biopharmaceutical Silicone Tube
Typical application fields
◆Aseptic filling and fluid transportation ◆Bioreactor pipeline◆Pharmaceutical and biotechnology processes◆Disposable system◆Pipeline assemble
◆Aseptic filling and fluid transportation ◆Bioreactor pipeline◆Pharmaceutical and biotechnology processes◆Disposable system◆Pipeline assemble
Product Description
Product Features
◆To be produced in cleaning room
◆Pharmaceutic grade platinum cured silicone tube, low dissolved matter
◆Low working temperature scope：-60°C -- 200°C
◆Can be sterilized by high temperature and high pressure\EO\gamma ray
◆High smooth inner surface which can inhibit fluid adsorption
◆Complete control from raw material to products leaving factory, and batch can be traced
◆No animal derived ingredients
◆High flexibility
Typical application fields
◆Aseptic filling and fluid transportation ◆Bioreactor pipeline◆Pharmaceutical and biotechnology processes◆Disposable system◆Pipeline assemble
Physical and mechanical properties
Properties | Test Standards | Indicators |
Hardness: SHOREA hardness tester by 3 seconds | GB/T531.1-2008 | 55±5 |
Tensile strength MPa | GB/T528-2009 | ≥9 |
Elongation at break 100% | GB/T528-2009 | ≥400 |
Tear strength KN/m | GB/T529-2008 | ≥60 |
Density | 1.08±0.02 |
Biocompatibility Verification
Verification Items | Report No. | Regulation Standards |
Bacterial endotoxin test | SSMT-R-2021-00069-01A | Chinese pharmacopoeia 2020 part IV 1143 |
In vitro hymolysis test, rabbit blood | SDWH-M201501816-1 | EN ISO 10993-4：2009 |
Skin sensitization test：Test of max dose in guinea pigs | P 2015032522 | ISO 10993-10：2010 |
Intradermal reaction test | P2015032522 | ISO 10993-10：2010 |
Cytotoxicity test | Y2010030527 | ISO10993.5-2009/Extraction method |
Extract research report | RP-200518-001（01） | PF 45(2)USP-1663;National drug packing material standard\Chinese pharmacopoeia 2015 version,etc. |
Size & specification
Product Code | ID (mm) (inch) | OD (mm) (inch) | Thickness (mm) (inch) | Length(m) |
sup-cspt-0063-0188 | 1.59 1/16 | 4.76 3/16 | 1.59 1/16 | 15/50 |
sup-cspt-0094-0219 | 2.38 3/32 | 5.56 7/32 | 1.59 1/16 | 15/50 |
sup-cspt-0125-0250 | 3.18 1/8 | 6.35 1/4 | 1.59 1/16 | 15/50 |
sup-cspt-0125-0313 | 3.18 1/8 | 7.95 5/16 | 2.38 3/32 | 15/50 |
sup-cspt-0125-0375 | 3.18 1/8 | 9.53 3/8 | 3.18 1/8 | 15/50 |
sup-cspt-0156-0281 | 3.96 5/32 | 7.14 9/32 | 1.59 1/16 | 15/50 |
sup-cspt-0156-0406 | 3.96 5/32 | 10.31 13/32 | 3.18 1/8 | 15/50 |
sup-cspt-0188-0313 | 4.76 3/16 | 7.95 5/16 | 1.59 1/16 | 15/50 |
sup-cspt-0188-0375 | 4.76 3/16 | 9.53 3/8 | 2.38 3/32 | 15/50 |
sup-cspt-0250-0313 | 6.35 1/4 | 7.95 5/16 | 0.79 1/32 | 15/50 |
sup-cspt-0250-0375 | 6.35 1/4 | 9.53 3/8 | 1.59 1/16 | 15/50 |
sup-cspt-0250-0438 | 6.35 1/4 | 11.11 7/16 | 2.38 3/32 | 15/50 |
sup-cspt-0250-0500 | 6.35 1/4 | 12.7 1/2 | 3.18 1/8 | 15/50 |
sup-cspt-0313-0438 | 7.95 5/16 | 11.11 7/16 | 1.59 1/16 | 15/50 |
sup-cspt-0313-0500 | 7.95 5/16 | 12.7 1/2 | 2.38 3/32 | 15/50 |
sup-cspt-0375-0500 | 9.53 3/8 | 12.7 1/2 | 1.59 1/16 | 15/50 |
sup-cspt-0375-0563 | 9.53 3/8 | 14.3 9/16 | 2.38 3/16 | 15/50 |
sup-cspt-0375-0625 | 9.53 3/8 | 15.88 5/8 | 3.18 1/8 | 15/50 |
sup-cspt-0500-0688 | 12.7 1/2 | 17.47 11/16 | 2.38 3/32 | 15/50 |
sup-cspt-0500-0750 | 12.7 1/2 | 19.05 3/4 | 3.18 1/8 | 15/50 |
sup-cspt-0625-0875 | 15.88 5/8 | 22.22 7/8 | 3.18 1/8 | 15/50 |
sup-cspt-0750-1000 | 19.05 3/4 | 25.4 1 | 3.18 1/8 | 15/50 |
sup-cspt-0750-1125 | 19.05 3/4 | 28.57 9/8 | 4.76 3/16 | 15/50 |
sup-cspt-0750-1250 | 19.05 3/4 | 31.75 5/4 | 6.35 1/4 | 15/50 |
sup-cspt-1000-1375 | 25.4 1 | 34.92 11/8 | 4.76 3/16 | 15/50 |
sup-cspt-1000-1500 | 25.4 1 | 38.1 3/2 | 6.35 1/4 | 15/50 |
