Medical Silicone Pleural Drainage Tubes: Why Fish Mouth Design with X-ray Opaque Lines Changed Thoracic Surgery

I still remember the first time I saw a collapsed lung on a chest X-ray during my early days working with thoracic surgeons. The patient was a 45-year-old construction worker who'd suffered a pneumothorax, and watching the medical team struggle with an old-style drainage tube that kept shifting position was eye-opening. That was twelve years ago, before fish mouth design pleural drainage tubes with X-ray opaque lines became standard practice.

Today, at Jinan Chensheng Medical Technology Co., Ltd., we manufacture these advanced medical silicone pleural drainage tubes that have revolutionized thoracic surgery outcomes. As a national high-tech enterprise specializing in medical silicone rubber materials, we've seen firsthand how proper drainage tube design can mean the difference between successful treatment and complications.

Understanding Pleural Drainage Tube Fundamentals

A pleural drainage tube, also called a chest tube or thoracostomy tube, removes air, blood, or fluid from the pleural space - the area between your lungs and chest wall. When this space fills with unwanted material, it can compress the lung and create life-threatening situations.

The traditional straight-tip drainage tubes we used years ago had significant limitations. They'd migrate, become blocked, or fail to drain effectively from the pleural cavity's dependent portions. Surgeons constantly worried about tube positioning and drainage efficiency.

Then fish mouth design changed everything.

The Fish Mouth Design Revolution

The fish mouth tip design features multiple drainage holes arranged in a specific pattern that resembles a fish's mouth when viewed from the side. This isn't just aesthetic - it's functional engineering that addresses real clinical problems.

Here's why this design works so much better:

Multiple Drainage Points

Instead of relying on a single opening, the fish mouth design provides several drainage holes. If one becomes blocked by tissue or clot, others continue functioning. I've seen cases where traditional single-hole tubes became completely occluded, requiring replacement, while fish mouth designs maintained drainage throughout the treatment period.

Reduced Tissue Trauma

The rounded, smooth edges of the fish mouth openings cause less tissue damage during insertion and while in place. Sharp edges on older tube designs often caused pleural irritation and patient discomfort.

Improved Flow Dynamics

The multiple openings create better fluid flow patterns within the pleural space. This means more effective drainage of blood, pus, or other fluids that might otherwise pool in dependent areas.

Decreased Migration Risk

The design provides better anchoring within the pleural space, reducing the likelihood of tube displacement - a serious complication that can require emergency repositioning.

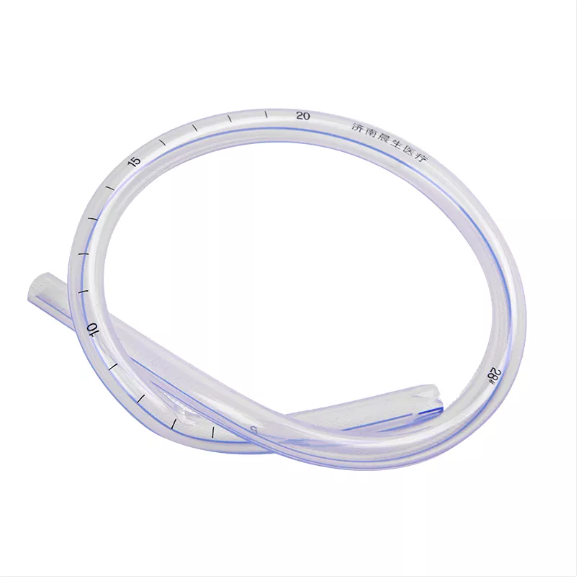

X-ray Opaque Line Technology

The integration of X-ray opaque lines into pleural drainage tubes represents another major advancement. At Jinan Chensheng, we incorporate these radiopaque markers using specialized silicone compounds that maintain flexibility while providing clear radiographic visibility.

Why Radiographic Visibility Matters

In thoracic surgery, precise tube positioning is critical. The tube needs to reach the appropriate area of the pleural space without penetrating lung tissue or extending too far into the chest cavity. Before X-ray opaque lines, surgeons relied on external measurements and anatomical landmarks - methods that weren't always accurate.

With integrated radiopaque lines, medical teams can:

• Verify correct tube placement immediately after insertion

• Monitor tube position throughout treatment

• Detect migration or displacement quickly

• Ensure optimal drainage positioning for different types of pleural collections

Manufacturing Challenges We've Overcome

Creating X-ray opaque silicone compounds isn't straightforward. The radiopaque material must be evenly distributed throughout the silicone matrix without compromising flexibility, biocompatibility, or durability.

We use barium sulfate compounds integrated into our platinum-cured silicone formulations. The challenge is achieving uniform distribution while maintaining the silicone's essential properties. Too much radiopaque material makes the tube stiff and difficult to insert. Too little makes it invisible on X-rays.

Our R&D team spent eighteen months perfecting the formulation. We tested dozens of combinations before achieving the right balance of visibility and flexibility.

Medical Grade Silicone Material Advantages

Not all silicone is created equal, especially for medical applications. At Jinan Chensheng, we use platinum-cured liquid silicone rubber (LSR) that meets USP Class VI and ISO 10993 biocompatibility standards.

Why Platinum-Cured Silicone?

Traditional peroxide-cured silicones can leave residual chemicals that cause inflammatory reactions. Platinum-cured silicone eliminates these concerns through a cleaner curing process that produces inert, biocompatible materials.

Our pleural drainage tubes offer several material advantages:

Temperature Stability

Body temperature doesn't affect tube flexibility or performance. The silicone maintains consistent properties from insertion through removal.

Chemical Resistance

Pleural fluid can be acidic, bloody, or contain inflammatory compounds. Our silicone formulations resist degradation from these challenging environments.

Sterilization Compatibility

The tubes withstand multiple sterilization methods including steam autoclaving, ethylene oxide, and gamma radiation without property changes.

Kink Resistance

Patient movement or positioning shouldn't compromise drainage. Our silicone maintains its shape and internal diameter even under stress.

Clinical Applications in Thoracic Surgery

We supply pleural drainage tubes to major hospitals throughout China and internationally. The applications span various thoracic conditions:

Pneumothorax Treatment

Both spontaneous and traumatic pneumothorax cases benefit from reliable drainage. The fish mouth design ensures complete air evacuation while the X-ray opaque line confirms proper positioning.

Pleural Effusion Management

Fluid accumulation from heart failure, infection, or malignancy requires effective drainage. Our tubes' multiple openings prevent blockage from fibrin or cellular debris.

Post-Surgical Drainage

After thoracic surgery, preventing fluid accumulation is essential for proper healing. Surgeons rely on our tubes' consistent performance throughout the recovery period.

Hemothorax Treatment

Blood in the pleural space must be evacuated quickly to prevent complications. The fish mouth design's superior flow characteristics make it ideal for these emergency situations.

Manufacturing Excellence at Jinan Chensheng

Our ISO13485-certified facility maintains strict quality controls throughout the production process. We've invested heavily in advanced manufacturing equipment and clean room environments specifically for medical device component production.

Production Process Overview

Raw Material Selection

We source medical-grade silicone from certified suppliers globally. Each batch undergoes incoming inspection and testing before use.

Precision Molding

The fish mouth tip requires precise molding to achieve the correct hole size, spacing, and edge finishing. We use custom tooling designed specifically for this geometry.

X-ray Opaque Line Integration

The radiopaque material is incorporated during the molding process, ensuring uniform distribution and strong bonding with the base silicone.

Quality Testing

Every production batch undergoes comprehensive testing including dimensional verification, radiopacity measurement, biocompatibility confirmation, and mechanical property assessment.

Sterilization and Packaging

Final products are sterilized using validated processes and packaged in sterile, protective packaging suitable for hospital use.

Global Market Presence and Certifications

Our pleural drainage tubes serve markets worldwide. We maintain CE certification for European distribution and work with regulatory partners for other international markets.

Hospital Partnerships

We supply major tertiary hospitals throughout China, including leading thoracic surgery centers. The feedback from surgical teams has been consistently positive, with reports of improved drainage efficiency and reduced complications.

International Distribution

Our products reach hospitals in Europe, Asia, and North America through established distribution partnerships. Each market has specific regulatory requirements that we meet through careful documentation and testing.

Continuous Improvement

We maintain ongoing relationships with clinical users to gather feedback and identify improvement opportunities. This real-world input drives our product development efforts.

Quality Assurance and Regulatory Compliance

Medical device manufacturing requires rigorous quality systems. Our ISO13485 certification demonstrates our commitment to consistent quality and regulatory compliance.

Testing Protocols

Every pleural drainage tube undergoes multiple tests:

• Biocompatibility Testing: USP Class VI and ISO 10993 compliance verification

• Mechanical Testing: Tensile strength, elongation, and durability assessment

• Radiopacity Testing: X-ray visibility confirmation using standardized methods

• Dimensional Verification: Precise measurement of all critical dimensions

• Sterilization Validation: Confirmation of sterilization effectiveness and material compatibility

Traceability Systems

We maintain complete traceability from raw materials through finished products. This enables rapid response to any quality concerns and supports regulatory requirements.

Risk Management

Our quality system includes comprehensive risk analysis and mitigation strategies for all aspects of design, manufacturing, and distribution.

Innovation and Future Development

The medical device industry continues evolving, and we're developing next-generation pleural drainage technologies:

Smart Drainage Systems

Integration of sensors for real-time monitoring of drainage volume and characteristics.

Enhanced Biocompatibility

New silicone formulations with improved tissue compatibility and reduced inflammatory response.

Antimicrobial Properties

Incorporation of antimicrobial agents to reduce infection risk.

Biodegradable Components

Development of partially biodegradable tubes for specific applications.

Clinical Outcomes and Benefits

Hospitals using our fish mouth design pleural drainage tubes with X-ray opaque lines report several benefits:

Reduced Complications

Better drainage efficiency leads to fewer cases of retained fluid or air, reducing the need for additional procedures.

Shorter Hospital Stays

More effective drainage often means faster recovery and earlier discharge.

Improved Patient Comfort

The smooth fish mouth design causes less tissue irritation and patient discomfort.

Enhanced Surgical Confidence

Surgeons appreciate the reliable performance and clear radiographic visibility for positioning confirmation.

The Manufacturing Challenge

Producing medical-grade pleural drainage tubes isn't simple manufacturing - it's precision engineering with life-or-death implications. Every component must meet exacting standards, and there's no room for error.

We've invested millions in specialized equipment, clean room facilities, and quality systems. Our team includes engineers, chemists, and quality specialists who understand both the technical requirements and clinical applications.

The regulatory environment is complex and constantly evolving. We maintain dedicated regulatory affairs staff to ensure ongoing compliance with changing requirements across multiple markets.

Why Choose Jinan Chensheng Medical Technology

As a national high-tech enterprise with extensive experience in medical silicone manufacturing, we offer several advantages:

Technical Expertise

Our R&D team has deep knowledge of medical silicone chemistry and thoracic surgery requirements.

Manufacturing Capability

Advanced production equipment and clean room facilities ensure consistent quality and reliable supply.

Quality Systems

ISO13485 certification and comprehensive testing protocols provide confidence in product reliability.

Global Reach

CE certification and international distribution partnerships enable worldwide market access.

Customer Support

Technical service and application support help ensure optimal product performance.

The fish mouth design pleural drainage tube with X-ray opaque line represents the convergence of advanced materials science, precision manufacturing, and clinical need. At Jinan Chensheng Medical Technology, we're proud to contribute to improved patient outcomes through our expertise in medical silicone manufacturing.

Whether you're a medical device company seeking reliable component suppliers or a healthcare provider interested in understanding the technology behind modern drainage systems, we're committed to advancing thoracic surgery through innovative silicone solutions.
