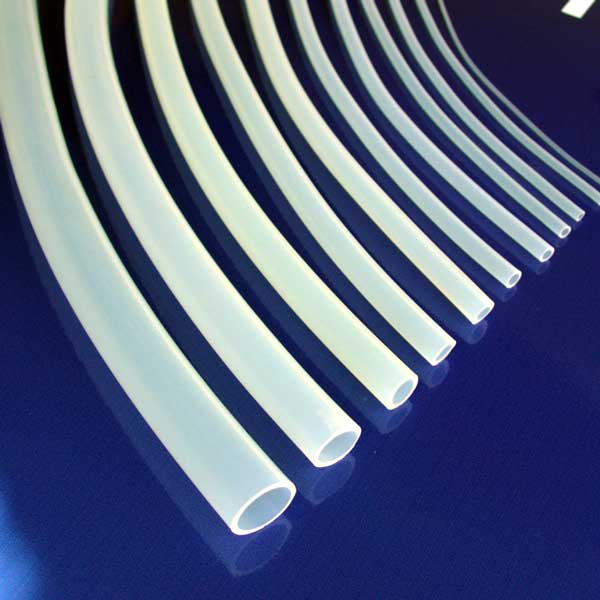

Transparent Braided Silicone Tubing: Maintaining Crystal Clear Visibility Through Years of Medical Use
Views: 0 Author: Site Editor Publish Time: 2025-09-21 Origin: Site
Working in medical device manufacturing for over a decade, I've seen countless transparent tubing products that started crystal clear but turned yellow, cloudy, or brittle after just months of clinical use. It's frustrating when you invest in what seems like quality tubing, only to have it fail the clarity test when it matters most.
The question isn't whether transparent braided silicone tubing can maintain clarity - it's whether the manufacturer knows how to formulate and process it correctly. Most don't.
Why Most Transparent Tubing Fails Over Time
I learned this lesson the hard way back in 2015. We supplied transparent braided tubing to a major hospital system for their surgical irrigation equipment. Six months later, they called complaining that the tubing had turned yellow and was affecting surgical visibility.
The problem wasn't the braiding - it was the silicone formulation. Most manufacturers use peroxide-cured silicone because it's cheaper and easier to process. But peroxide curing leaves behind organic residues that break down under heat and UV exposure, causing that telltale yellow discoloration.
Common causes of clarity loss:
Peroxide curing system residues
Improper catalyst ratios during manufacturing
Contamination during the braiding process
Wrong cleaning agents destroying the silicone structure
Steam sterilization at excessive temperatures
The worst part is that this degradation often happens gradually. The tubing looks fine for the first few months, then slowly loses clarity until it's unusable. By then, you've already installed it in expensive medical equipment.
The Platinum Catalyst Difference
Real transparency retention requires platinum-catalyzed silicone systems. These cost more upfront, but they're the only way to maintain optical clarity through hundreds of sterilization cycles.
Platinum catalysts create cleaner crosslinking without the organic byproducts that cause yellowing. The cured silicone is inherently more stable against heat, chemicals, and UV exposure. We've had platinum-cured transparent tubing in continuous use for over five years that still looks brand new.
Platinum vs. peroxide curing comparison:
Initial clarity: Both systems start crystal clear
After 100 steam cycles: Platinum remains clear, peroxide shows yellowing
Chemical resistance: Platinum handles aggressive cleaners better
Temperature stability: Platinum maintains properties to 200°C
Long-term aging: Platinum shows minimal property changes
The manufacturing process is more demanding with platinum systems. Temperature control has to be precise, and any contamination will inhibit the catalyst. But the results speak for themselves.
Real-World Clarity Performance
Last year, we worked with a pharmaceutical company that needed transparent braided tubing for their sterile filling lines. Visual inspection is critical in their process - operators need to see any air bubbles, particulates, or flow irregularities.
Their previous supplier's tubing started clouding after about 50 cleaning cycles. The pharmaceutical company was replacing tubing every three months, which was expensive and created downtime during changeovers.
We provided platinum-cured transparent braided tubing with our optimized cleaning protocols. After 18 months and over 400 cleaning cycles, the tubing still maintains excellent clarity. The pharmaceutical company calculated they're saving $25,000 annually just from reduced tubing replacement costs.
Sterilization Impact on Transparency
Steam sterilization is the biggest challenge for transparent tubing. The combination of high temperature, moisture, and pressure can degrade even well-formulated silicone over time.
Sterilization effects we've documented:
Steam at 121°C: Minimal impact with proper formulation
Steam at 134°C: Slight haze after 200+ cycles
Ethylene oxide: No transparency impact
Gamma radiation: Can cause slight yellowing over time
Chemical sterilants: Varies dramatically by agent
The key is understanding your sterilization requirements upfront. We can adjust the silicone formulation and braid materials to optimize for specific sterilization methods.
For applications requiring frequent high-temperature sterilization, we use specialized heat-stabilized formulations. These cost about 15% more but maintain clarity through 500+ steam cycles at 134°C.
Cleaning Agent Compatibility
Not all cleaning agents are compatible with transparent silicone. Some common hospital cleaners can cause cloudiness, swelling, or surface degradation that ruins optical clarity.
Cleaning agents we've tested:
Alkaline cleaners: Generally compatible with proper formulation
Acidic cleaners: Can cause surface etching if too concentrated
Alcohol-based cleaners: Excellent compatibility
Quaternary ammonium compounds: Usually safe but test first
Bleach solutions: Acceptable at low concentrations
Enzymatic cleaners: Generally compatible
We maintain a compatibility database with over 200 common cleaning products. Before recommending tubing for an application, we verify compatibility with the customer's specific cleaning protocols.
One cardiac catheterization lab was having problems with tubing cloudiness. Turned out they were using a cleaning agent with high alkalinity that was etching the silicone surface. We switched them to a compatible cleaner and the problem disappeared.
Manufacturing Challenges for Clear Braided Tubing
Making transparent braided tubing requires exceptional process control. Any contamination, temperature variation, or timing issue can create optical defects that won't show up until after sterilization cycles.
The braiding process is particularly challenging. The polyester fibers have to be absolutely clean - any sizing agents or processing aids can migrate into the silicone and cause cloudiness. We pre-treat all reinforcement fibers and verify cleanliness before use.
Critical manufacturing controls:
Clean room environment prevents particulate contamination
Precise temperature control during extrusion
Contamination-free polyester fiber preparation
Proper cure conditions to ensure complete crosslinking
Post-cure inspection under controlled lighting
Quality control for transparent tubing is more demanding too. We inspect every production lot under standardized lighting conditions and document optical properties. Any tubing that doesn't meet our clarity standards gets rejected.
Polyester Braid Compatibility
The reinforcement braid can affect transparency in subtle ways. Standard polyester fibers are usually fine, but some treatments or coatings can cause problems.
We use medical-grade polyester fibers with minimal processing aids. The fibers are pre-cleaned to remove any residues that could migrate into the silicone. The braid pattern is optimized to provide reinforcement while minimizing optical interference.
Braid considerations for transparency:
Fiber cleanliness critical to prevent contamination
Braid density affects light transmission
Fiber color must be stable under sterilization
Proper embedding prevents fiber movement
For critical applications, we can provide tubing with optical-grade polyester fibers that have enhanced clarity and stability. These cost more but provide the best possible optical performance.
Testing Protocols That Matter
Standard transparency testing usually involves measuring light transmission through new tubing. That's useful, but it doesn't predict long-term performance.
We developed accelerated aging protocols that simulate years of use in weeks. Tubing samples go through repeated sterilization cycles, cleaning protocols, and temperature cycling while we monitor optical properties.
Our transparency testing includes:
Initial light transmission measurement
Haze measurement using standardized methods
Color stability under accelerated aging
Clarity retention after 500+ sterilization cycles
Chemical compatibility with cleaning agents
The results help us optimize formulations for specific applications. A tubing formulation that works great for room temperature pharmaceutical use might not maintain clarity under surgical sterilization conditions.
Application-Specific Formulations
Different medical applications have different transparency requirements. Surgical irrigation needs excellent clarity but only moderate chemical resistance. Pharmaceutical processing might accept slight haze in exchange for superior chemical compatibility.
Formulation optimization examples:
Surgical applications: Maximum clarity, moderate chemical resistance
Pharmaceutical use: Good clarity, excellent chemical compatibility
Laboratory equipment: Balanced properties for general use
Critical care devices: Enhanced stability for long-term implantation
We work with customers to understand their specific requirements and optimize the tubing formulation accordingly. This usually involves small-scale trials to validate performance before full production.
Cost Considerations
Transparent braided tubing costs more than standard silicone tubing - typically 3-4 times the price. The platinum curing systems, clean room manufacturing, and enhanced quality control all add to the cost.
But the total cost picture often favors transparent tubing. Reduced replacement frequency, better process visibility, and improved product quality can easily justify the higher initial cost.
Cost factors to consider:
Initial tubing cost vs. replacement frequency
Downtime costs for tubing changes
Product quality improvements from better visibility
Reduced inspection costs with clear tubing
One medical device manufacturer calculated that switching to our transparent braided tubing reduced their total tubing costs by 30% despite the higher unit price. The improved reliability and longer service life more than offset the initial cost difference.
Quality Standards and Certifications
Medical-grade transparent tubing requires extensive validation. Our ISO13485 quality system covers the entire manufacturing process, from raw material qualification through final inspection.
USP Class VI biocompatibility testing is more complex for transparent formulations. The platinum catalyst system and any optical additives need separate validation to ensure patient safety.
Certifications we maintain:
ISO13485 medical device quality system
USP Class VI biocompatibility for complete assembly
FDA CFR 177.2600 food contact compliance
CE marking for European medical device markets
The documentation requirements are extensive, but they provide confidence that the tubing will perform consistently in medical applications.
Future Developments
We're working on several improvements to transparent braided tubing technology. New platinum catalyst systems promise even better clarity retention. Advanced polyester fibers with enhanced optical properties are under development.
The most exciting development is self-indicating tubing that changes color when cleaning or sterilization parameters are exceeded. This could prevent clarity loss by alerting users to conditions that might damage the tubing.
Making the Right Choice
Transparent braided silicone tubing can maintain excellent clarity through years of medical use - if it's properly formulated and manufactured. The key is working with a supplier who understands the chemistry and has the manufacturing capabilities to deliver consistent quality.
Don't assume all transparent tubing is the same. Ask about the curing system, sterilization compatibility, and long-term clarity data. Request samples for your specific application and test them under realistic conditions.
The upfront investment in quality transparent tubing pays off through reduced replacement costs, better process visibility, and improved reliability. When patient safety and product quality depend on optical clarity, there's no substitute for properly engineered transparent braided silicone tubing.
Need transparency data for your specific sterilization and cleaning protocols? We maintain extensive compatibility databases and can provide application-specific recommendations. Contact our technical team to discuss your optical clarity requirements.
