In the rapidly evolving landscape of 2025—driven by the miniaturization of medical devices and the demand for precision drug delivery—silicone tubing is no longer just a commodity component. It is a critical interface between technology and biology.
For R&D engineers, selecting the wrong tubing can lead to project delays, regulatory roadblocks (FDA/MDR), or critical failures in clinical settings. This guide delves into the material science, mechanical engineering, and regulatory nuances of medical silicone, helping you mitigate risk and balance performance with cost in your next design.
When sourcing tubing, the first decision defines the success of your application: the curing system.
While both are silicone elastomers, their chemical behaviors differ significantly.
Feature | Platinum Cured | Peroxide Cured | Application Advice |
Clarity | Crystal Clear | Slight Haze / Yellow Tint | Choose Platinum for optical monitoring. |
Leachables | Ultra-low (No by-products) | Lower, potential by-products | Platinum is mandatory for Biopharma & Blood Contact. |
Strength | Superior Tear Strength | Good Physical Properties | Platinum is ideal for high-stress pumps. |
Cost | Premium | Economical | Use Peroxide for non-fluid contact parts. |
The 2025 Industry Verdict: As regulatory scrutiny on Extractables and Leachables (E&L) tightens globally, high-end medical devices (such as ECMO and bioprocessing assemblies) are shifting almost exclusively to Platinum Cured Silicone.
Implantable Grade (>29 Days): The gold standard for long-term use. This is required for devices like our Hydrocephalus Drainage Apparatus or Artificial Nose Bridges. These materials undergo rigorous testing for chronic toxicity.

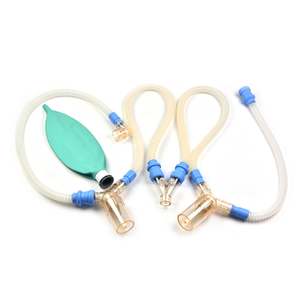

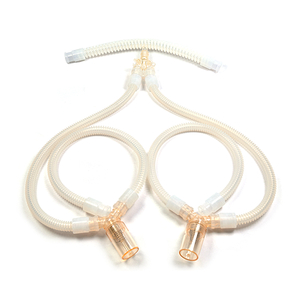

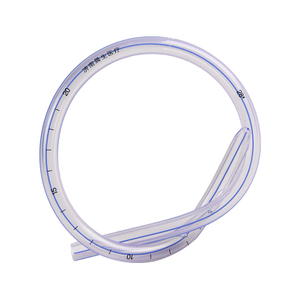

Medical Grade (<29 Days): The standard for transient use, suitable for catheters, drainage tubes, and respiratory circuits.
Pharma Grade: Specifically formulated to resist chemical degradation during biopharmaceutical manufacturing.
In 2025, meeting USP Class VI is merely the baseline. Global compliance now requires:
ISO 10993: A full suite of biocompatibility tests (Cytotoxicity, Sensitization, Hemocompatibility).
REACH / RoHS: Ensuring the material is free from hazardous substances for the EU market.
For the design engineer, specific parameters dictate clinical performance.
Silicone typically ranges from Shore 30A to 80A.
Soft (30A-50A): High elasticity. Crucial for peristaltic pump tubing to maximize occlusion and minimize motor load.
Hard (60A-80A): High stiffness. Ideal for catheters that require "pushability" during insertion or structural outer sheaths.
In minimally invasive surgery, standard tolerances (+/- 0.1mm) are often insufficient.
At Jinan Chensheng, we utilize advanced laser-gauged extrusion to achieve tolerances as tight as +/- 0.05mm.
Why it matters: Wall thickness consistency ensures stable flow rates and leak-proof connections with Luer locks.
Temperature Range: Effective from -60℃ to 200℃, allowing for repeated Autoclave cycles.
Tear Strength: Critical for thin-walled catheters to prevent rupture during surgical manipulation.
Standard tubing is easy. The challenge lies in complex, functional extrusion.
Delivering fluids, guiding wires, and inflating balloons simultaneously within a single catheter.
Challenge: Preventing "crosstalk" (leakage between lumens) and maintaining concentricity.
To make tubing visible under X-Ray or Fluoroscopy, we compound Barium Sulfate into the silicone.
Co-Extrusion Technology: We can embed a radiopaque stripe into a clear tube, allowing doctors to see the tube's position and the fluid inside simultaneously.
For high-pressure applications (like contrast injection) or to prevent kinking in endoscopes, we embed fiber braiding within the silicone walls.
Serving the neurovascular field with ultra-fine tubing (ID < 0.2mm), requiring microscopic precision in tooling.
The Enemy: Spallation (particle shedding).
The Solution: High-resilience platinum-cured silicone designed to withstand millions of compression cycles without releasing particulate matter into the bloodstream or drug.
The Focus: Sterility assurance.
The Solution: Tubing that maintains integrity after Gamma Irradiation sterilization without becoming brittle or discolored.
The Focus: Surface friction.
The Solution: Assessing the need for hydrophilic coatings to reduce trauma during insertion.
For procurement managers, reliability is paramount.
Medical tubing must be extruded in a controlled environment. Jinan Chensheng operates strictly within ISO Class 7 and Class 8 cleanrooms to minimize bioburden and particulate contamination.
Ethylene Oxide (EtO): Silicone is gas-permeable, making it ideal for EtO, provided aeration times are respected.
Autoclave (Steam): Silicone’s natural strength; ideal for reusable instruments.
Gamma/E-Beam: Requires radiation-stable raw material grades.
To accelerate your prototyping phase, ensure your Request for Quotation (RFQ) includes:
✅ Dimensions: ID / OD and Tolerance requirements.
✅ Hardness: Shore A value.
✅ Application: Implantable (Long-term) vs. Transient use.
✅ Sterilization Method: EtO, Gamma, or Autoclave?
✅ Special Features: Radiopacity, braiding, or color coding.
We are not just a manufacturer; we are a National High-Tech Enterprise dedicated to material innovation.
Global Certification: Operating under ISO 13485, with CE-certified products exported to Europe, the Americas, and Asia.

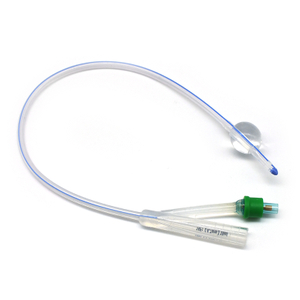

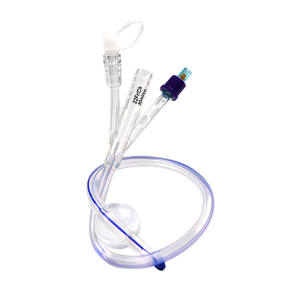

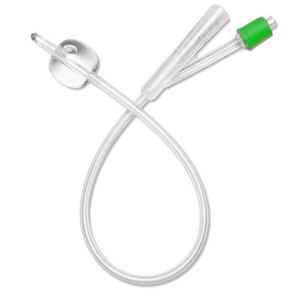

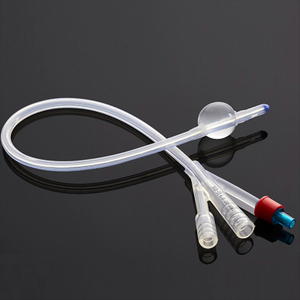

Diverse Portfolio: From Hydrocephalus Shunts and Artificial Implants to standard Foley Catheters and Peristaltic Pump Tubing.
Trusted Quality: We utilize premium imported raw materials and maintain a rigorous in-house laboratory for physical and chemical testing.
Custom Solutions: Full OEM/ODM services, from mold design to rapid prototyping.
Selecting the right medical silicone tubing is a balance of chemistry, physics, and regulation. In 2025, don't let your tubing be the weak link in your medical device.
