7x10mm
Custom
Product Description
Step up to a higher standard of performance with our 7x10mm professional-grade silicone tubing. Engineered with a robust 1.5mm wall, this tube strikes the perfect equilibrium between flexibility and durability. It’s the ideal choice for applications that demand more resilience and kink-resistance than standard thin-wall tubing, without sacrificing the maneuverability needed for complex installations.
Balanced 1.5mm Wall Design: Provides a significant upgrade in durability and pressure handling over 1mm tubing, while remaining pliable for easy routing.
Enhanced Kink Resistance: The thicker wall resists collapsing and kinking when bent, ensuring a consistent, uninterrupted flow path, especially in dynamic or tight-fit applications.
Optimized for Peristaltic Pumps: The combination of flexibility and resilience makes this tubing exceptionally well-suited for peristaltic pump applications, offering a longer service life and stable flow rates.
Superior Durability: Offers greater resistance to abrasion, tearing, and repeated stress, making it a reliable choice for industrial environments and demanding machinery.
Certified Purity & Safety: Fabricated from 100% platinum-cured silicone, it is non-toxic, odorless, and fully compliant with FDA and LFGB standards for safe use with food, beverages, and sensitive materials.

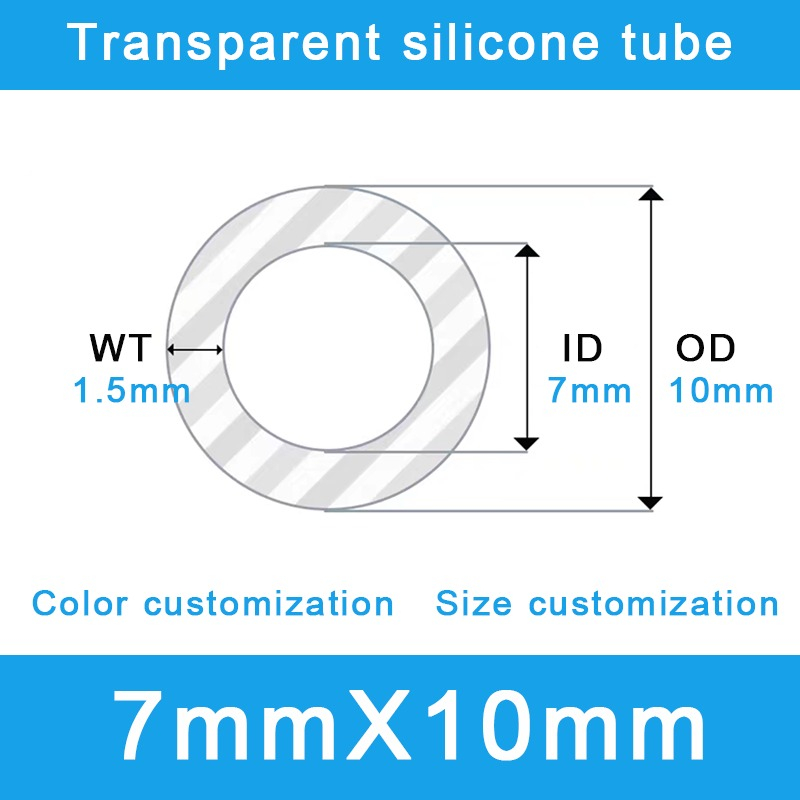

Parameter | Specification |
Inner Diameter (ID) | 7 mm |
Outer Diameter (OD) | 10 mm |
Wall Thickness | 1.5 mm |
Material Compound | Platinum-Cured Silicone |
Color | High-Clarity Transparent (Custom Pantone colors available) |
Hardness (Shore A) | 60±5A (Or custom formulated) |
Temperature Range | -60°C to 200°C (-76°F to 392°F) |
Compliance | FDA, LFGB, RoHS, REACH |
This balanced-performance tubing excels where reliability is key:
Peristaltic & Dosing Pumps: The go-to choice for accurate fluid metering, offering excellent rebound and long operational life.
Industrial Fluid Transfer: Ideal for moving coolants, lubricants, and process fluids where enhanced durability is required.
Premium Appliances: Used in high-end coffee makers, medical devices, and analytical equipment that require dependable, long-lasting components.
Automotive & Motorsports: Perfect for vacuum lines, washer fluid systems, and coolant overflow where resistance to vibration and heat is critical.
Moderate Pressure & Vacuum Lines: Suitable for applications requiring a step up in performance from general-purpose tubing.
Don't settle for off-the-shelf. Partner with JINAN CHENSHENG, a leading Chinese OEM/ODM manufacturer, to create the precise silicone solution your application deserves. We combine material science with precision manufacturing to deliver unparalleled value.
Our Capabilities Include:
Precision Extrusion: We can produce tubing with your exact ID, OD, and wall thickness requirements.
Custom Material Formulation: Need a specific hardness, color, or enhanced chemical resistance? We develop compounds tailored to your needs.
Value-Added Services: We offer custom cutting to length, printing/marking, and assembly services to streamline your production.
Factory-Direct Wholesale: Gain a competitive advantage with our wholesale pricing, ensuring you get the best quality for your budget, direct from the source.
Contact our specialists to discuss your technical requirements and receive a no-obligation quote for your custom or bulk order!
Supplied by the meter in a single, continuous length for your convenience.
Note: This tubing offers an excellent blend of flexibility and structural integrity, making it a highly versatile and reliable choice for a wide range of professional applications.
