7x13mm
Custom
Product Description
When standard and even heavy-duty tubing is not enough, our 7x13mm armored-wall silicone tubing provides the definitive solution. Engineered with a formidable 3mm wall, this semi-rigid tube is built less for flexibility and more for absolute structural integrity. It is designed to perform in applications where the highest levels of pressure, vacuum, and physical protection are not just required, but mission-critical.
Maximum Pressure Containment: The 3mm wall provides the highest pressure rating in our 7mm ID lineup, making it the undisputed choice for demanding hydraulic and pneumatic systems.
Absolute Form Retention: This tube is virtually indestructible under compressive loads. It will not kink, crush, or deform, ensuring a perfectly stable and reliable conduit under any external force.
Superior Thermal & Electrical Insulation: The extra-thick wall offers exceptional thermal insulation for temperature-sensitive transfers and provides a robust dielectric barrier for electrical protection.
Unmatched Physical Protection: Use it as a near-impenetrable shield. Its incredible abrasion and tear resistance makes it the ultimate protective sleeve for wires, cables, and smaller lines in hostile environments.
Potential as a Structural Component: Beyond fluid transfer, its rigidity allows it to be used as a non-marring structural spacer, bushing, or vibration-damping support in custom assemblies.

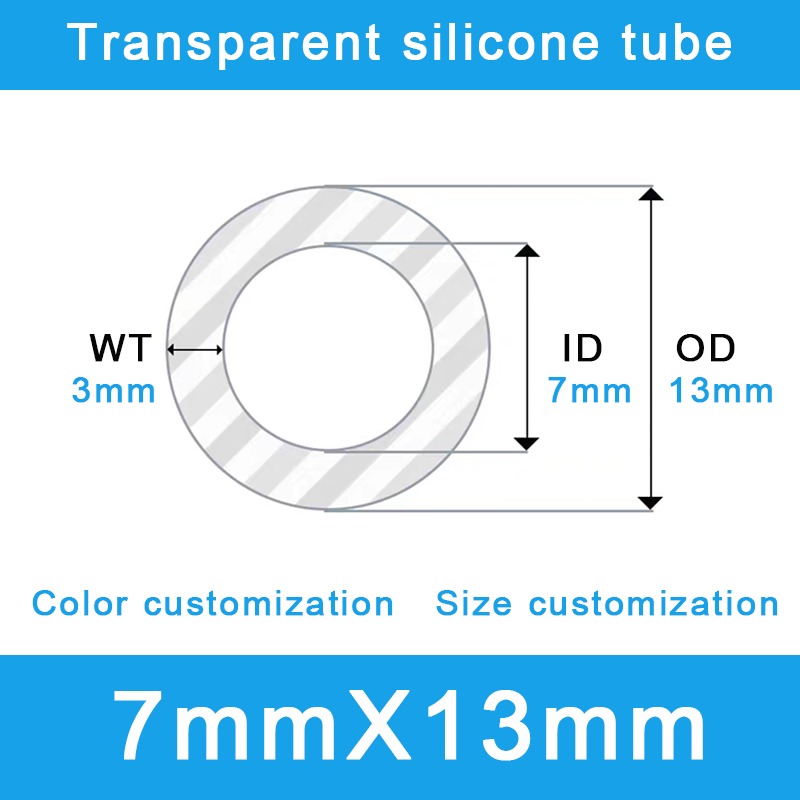

Attribute | Value |
Inner Diameter (ID) | 7 mm |
Outer Diameter (OD) | 13 mm |
Wall Thickness | 3 mm |
Material | 100% Platinum-Cured Silicone |
Color | Standard Transparent (Custom colors and opacities available) |
Hardness (Shore A) | 60±5A (Customizable up to 80A for maximum rigidity) |
Operational Temperature | -60°C to 200°C (-76°F to 392°F) |
Certifications | FDA, LFGB, RoHS, REACH |
This armored-wall tube excels where others fail:
High-Pressure Chemical Dosing: Provides a stable, non-expanding conduit for precise, high-pressure chemical injection systems.
Ultra-High Vacuum Manifolds: The ultimate choice for deep vacuum lines where zero collapse and outgassing are paramount.
Structural Spacers & Bushings: Ideal for use as durable, vibration-absorbing spacers in mechanical and electronic assemblies.
Protective Conduit in Heavy Industry: Perfect for routing and protecting critical lines through machine frames, robotic arms, and areas with high risk of impact.
Rollers & Bumpers: Can be cut to length and used as non-scratching rollers or protective bumpers in custom equipment and jigs.
Move beyond simple sourcing and partner with a manufacturer that understands structural performance. JINAN CHENSHENG is a premier Chinese OEM/ODM factory specializing in creating robust, application-specific silicone solutions.
Why Engineer Your Solution With Us?
Material Science Expertise: We can develop custom compounds to achieve extreme hardness, chemical resistance, or unique physical properties for your project.
Structural Design Support: Our team can help you leverage the unique properties of our rigid tubing for both fluid transfer and structural applications.
Unbeatable Factory-Direct Value: By partnering directly with the manufacturer, you gain access to unparalleled engineering and the most competitive pricing for high-performance products.
Guaranteed Quality & Consistency: Our rigorous quality control ensures every piece of tubing meets your exact specifications for dimensions, hardness, and performance.
When your project demands the strongest, most reliable solution, look no further. Contact JINAN CHENSHENG to discuss your specifications and receive a direct quote for your armored-wall tubing needs.
This product is sold by the meter and will be shipped as one continuous length.
Please Note: This is a SEMI-RIGID product. It has a very large bend radius and is not designed for flexibility or navigating tight corners. Its purpose is to provide maximum structural strength and pressure resistance. Please evaluate your application carefully.
