Product Description
Showcasing a 2mm x 4mm Tube as an Example of Our Capabilities
Are you searching for high-performance silicone tubing with precise dimensions like 2mm Inner Diameter (ID) x 4mm Outer Diameter (OD) for your equipment, medical device, or production line? At JINAN CHENSHENG, we specialize in manufacturing custom silicone tubing that meets your exact specifications. As a direct manufacturer, we control the entire process—from material formulation to precision extrusion—to deliver superior, reliable, and cost-effective tubing solutions.
Precision Size Control: We can manufacture tubing to your exact ID, OD, and wall thickness requirements with industry-leading tolerances, ensuring a perfect fit for your application.
Superior Material Performance: Made from 100% virgin silicone rubber, our tubing offers excellent biocompatibility, high and low-temperature resistance (-60°C to 250°C), and outstanding chemical stability.
Multiple Grades Available: From cost-effective industrial grades to high-purity medical grades, we provide a wide range of materials to meet the demands of any application.
Factory-Direct Advantage: By eliminating intermediaries, you get the most competitive pricing, faster lead times, and direct access to our engineering support.
Parameter | Details |
Product Name | Custom Silicone Tubing / Silicone Hose |

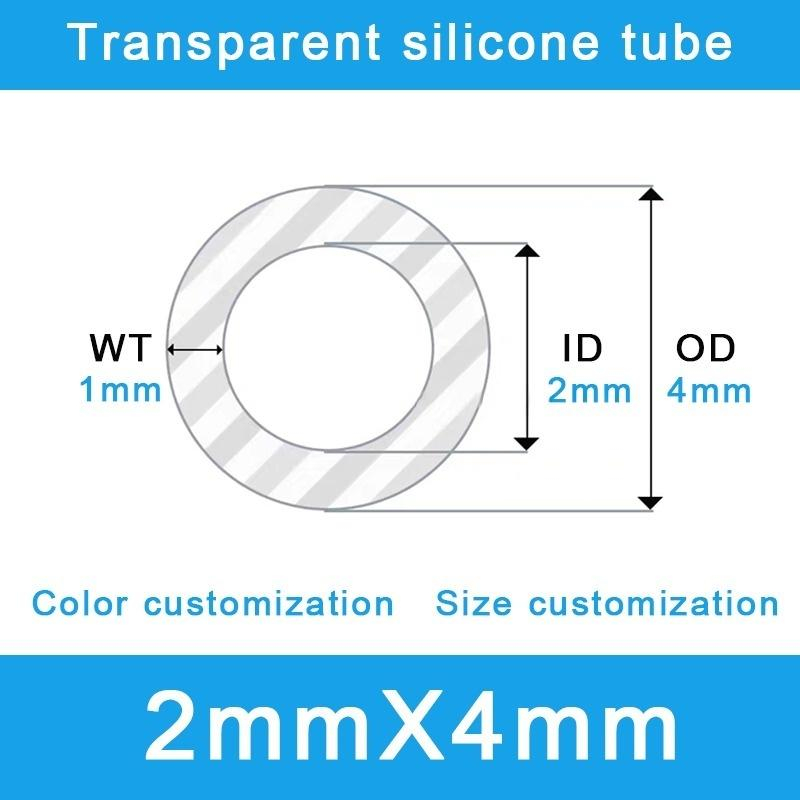

Example Size | ID: 2mm, OD: 4mm, Wall Thickness (WT): 1mm |
Size Range | Fully Customizable (Provide your ID, OD, or drawing) |
Material | 100% Silicone Rubber (Various grades available) |
Color | Translucent (Standard) / Custom Pantone Colors |
Hardness | Shore A 30-80 (Customizable to your needs) |
Temp. Resistance | -60°C to 250°C (-76°F to 482°F) |
Certifications | FDA, LFGB, USP Class VI, ISO 10993, NSF-51, 3A (Depending on selected grade) |
We understand that every project is unique. Our full customization service includes:
Size Customization: Specify any ID, OD, and wall thickness. We can create new tooling based on your drawings or requirements.
Color Customization: Match any Pantone color for easy product identification, assembly, or branding.
Hardness Customization: Select the ideal durometer (Shore A) for your application, from soft and flexible for peristaltic pumps to firmer for protective jacketing.
Material & Grade Customization: Choose the perfect material grade based on your application's performance, budget, and regulatory requirements.
Select the right type of silicone tubing to match your performance and compliance needs.
Grade | Key Features & Benefits | Typical Applications |
Platinum-Cured | Highest Purity. No byproducts, non-yellowing, and will not affect taste or quality. Certified to USP-VI and ISO-10993. | Pharmaceutical, biomedical, high-purity food & beverage transfer, laboratories. |
Peroxide-Cured | Cost-Effective. A robust and reliable option for less critical applications. Available in translucent and custom colors. | General industrial use, automotive systems, electronic insulation, applications not requiring high-level certifications. |
High/Low-Temp | Specially formulated to maintain flexibility and physical properties in extreme temperature environments. | Aerospace, automotive engine systems, food processing and baking equipment. |
Food-Grade | Complies with FDA 21CFR177.2600. Non-toxic, tasteless, and prevents contamination. Grades available that are NSF-51 and 3A compliant. | Drinking water systems, coffee machines, dairy processing, brewing, and water filtration. |
Medical-Grade | Excellent Biocompatibility. Non-reactive, hypoallergenic, and compatible with various sterilization methods. Complies with USP Class VI and ISO 10993. | Catheters, wound drains, feeding tubes, IVs, peristaltic pumps for drug delivery. |
Please note: These classifications are not mutually exclusive. For example, a tube can be platinum-cured, high-temperature, and food-grade simultaneously.
Thanks to its versatility, durability, and safety, our silicone tubing is the preferred choice across many industries:
Medical & Healthcare: Essential for medical devices, catheters, peristaltic pumps, and lab sampling due to its biocompatibility and sterilizability.
Food & Dairy Processing: Used for transferring milk, juice, beer, and other liquids. It is non-porous, easy to clean, and prevents flavor contamination.
Automotive Components: Outperforms standard rubber in engine coolant systems, turbochargers, and vacuum lines, resisting heat, vibration, and chemicals.
Electronic Equipment: Provides insulation and protection for electrical wiring against extreme temperatures and moisture.
Water Filtration & Purification: The non-toxic and tasteless properties make it ideal for residential water purifiers and laboratory filtration units.
Whether you require a small batch for prototyping or a large-scale production run, the JINAN CHENSHENG team is ready to provide professional and efficient service.
Tell us your requirements, and let our engineers help you design the perfect product for your needs.
