8x13mm
Custom
Product Description
Engineered for the absolute extremes, our 8x13mm silicone tubing is less a hose and more a flexible fortress. With a colossal 2.5mm wall thickness, it is designed to provide ultimate resistance against crushing, extreme internal pressures, and deep vacuum collapse. This is the definitive choice for mission-critical systems where failure is simply not an option and maximum durability is the primary requirement.
Extreme Pressure & Burst Resistance: The fortified 2.5mm wall provides an exceptional safety margin, capable of handling significant positive pressures far beyond standard or heavy-duty tubing.
Unmatched Crush & Kink Immunity: This tube’s rigid structure makes it virtually immune to kinking and offers supreme resistance to crushing from clamps, vehicle traffic, or accidental impacts.
Armor-Like Protective Sheathing: Use it as a robust conduit to shield critical cables, wires, and smaller hoses from severe abrasion, impact, and environmental hazards in the toughest industrial settings.
Structural Rigidity & Stability: While offering minimal flexibility, its inherent rigidity is a key feature, ensuring it maintains a perfect profile for fixed installations, high-suction applications, and use as a structural spacer or bumper.
Certified Purity for Critical Processes: Manufactured from 100% platinum-cured silicone, it provides an ultra-pure, non-leaching, and non-toxic pathway compliant with FDA and LFGB standards, even under extreme operational stress.

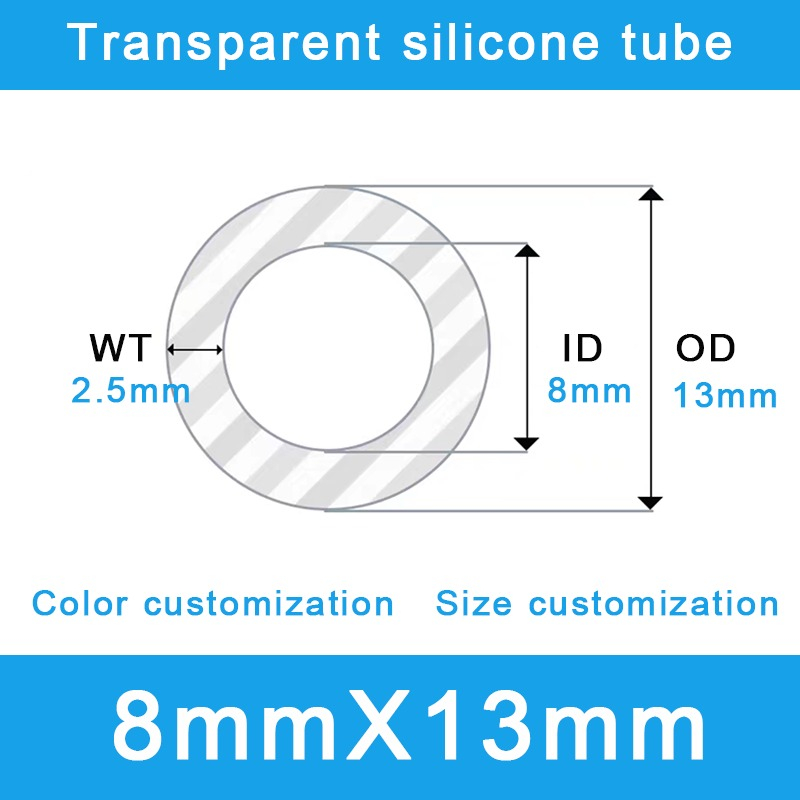

Attribute | Value |
Inner Diameter (ID) | 8 mm |
Outer Diameter (OD) | 13 mm |
Wall Thickness | 2.5 mm |
Material | 100% Platinum-Cured Silicone |
Color | Standard High-Clarity Transparent (Custom colors available) |
Hardness (Shore A) | 70±5A (Engineered for maximum rigidity and durability) |
Operating Temperature | -60°C to 200°C (-76°F to 392°F) |
Certifications | FDA, LFGB, RoHS, REACH |
This "Extreme-Duty" tube is built for the world's harshest jobs:
High-Pressure Pneumatic & Hydraulic Lines: An ideal, chemically resistant alternative to rubber hoses in high-pressure control and fluid power systems.
Deep Vacuum Chambers & Manufacturing: Guarantees zero collapse in high-vacuum furnaces, processing chambers, and laboratory vacuum manifolds.
Protective Armor/Conduit: The ultimate shield for wiring harnesses and fluid lines on mining equipment, agricultural implements, and factory floor robotics.
Slurry & Abrasive Material Transfer: The thick, durable wall withstands the transport of abrasive slurries, powders, and granular materials.
Structural & Isolation Components: Can be cut to length and used as high-temperature, non-conductive spacers, bumpers, or vibration dampeners.
When your project demands a component built to survive, you need more than a supplier—you need an engineering partner. JINAN CHENSHENG is a leading Chinese OEM/ODM silicone hose factory that specializes in creating robust, application-specific solutions.
The JINAN CHENSHENG Advantage:
Bespoke Engineering: We don't just sell stock sizes. We collaborate with you to engineer the perfect tubing solution for your pressure, durability, and chemical compatibility needs.
Direct-from-Factory Value: Access our advanced manufacturing capabilities and engineering support without the markup of distributors, ensuring maximum value.
Total Customization Authority: From material hardness and custom color matching to specialized printing and assembly-ready cut lengths, we control the entire process.
A Culture of Quality: Our ISO-certified quality management system ensures every product is traceable, consistent, and built to perform flawlessly.
Equip your most critical systems with the strength they deserve. Contact JINAN CHENSHENG to discuss your extreme application and receive a competitive factory quote.
This product is sold by the meter and will be supplied as one continuous length.
Please Note: This is our most rigid and robust 8mm ID tubing. Flexibility is extremely limited, and it is intended for straight runs or very large-radius bends only. A heavy-duty tube cutter or sharp blade is required for a clean cut.
