9x15mm
Custom
Product Description
When your application operates at the limits of pressure and endurance, you need a component built without compromise. Introducing our 9x15mm extreme-duty silicone tubing. With a colossal 3mm wall thickness, this is not just a tube—it's an industrial fortress, designed to provide absolute containment and structural integrity in the most punishing environments imaginable.
Maximum Pressure & Vacuum Integrity: The formidable 3mm wall provides the highest level of pressure containment in its class, capable of withstanding extreme pressure spikes and deep vacuum without a hint of deformation or collapse.
Unmatched Crush & Kink Resistance: This tube is virtually crush-proof. Its rigid, fortress-like structure offers ultimate protection against physical impact, abrasion, and kinking, guaranteeing a secure and uninterrupted flow path.
Engineered for Severe Service Life: Designed for "fit-and-forget" reliability in critical, inaccessible locations. Its exceptional resistance to tearing, fatigue, and physical stress ensures an extended service life under the most severe operational demands.
Ultimate Protective Jacketing: Beyond fluid transfer, its incredible toughness makes it the perfect choice for use as a protective sheath for sensitive cables, wiring, or smaller tubes in harsh industrial or automotive engine bays.
Superior Thermal & Chemical Resilience: Maintains its structural integrity and material properties across an extreme temperature range (-60°C to 200°C) while offering a steadfast barrier against a vast spectrum of aggressive industrial chemicals and solvents.

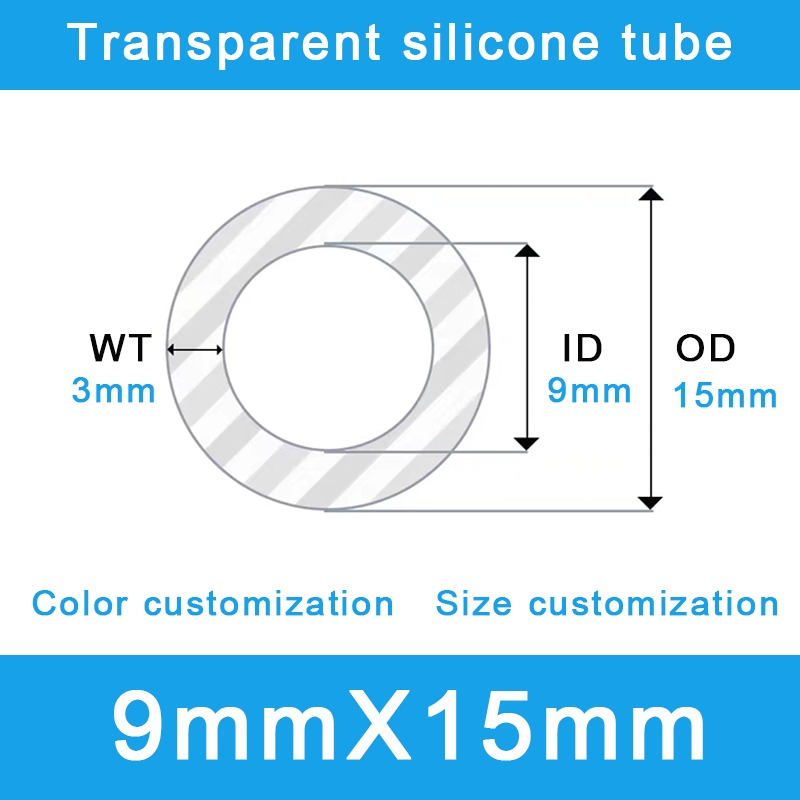

Attribute | Value |
Inner Diameter (ID) | 9 mm |
Outer Diameter (OD) | 15 mm |
Wall Thickness | 3.0 mm |
Material | 100% Platinum-Cured Silicone |
Color | Standard High-Clarity Transparent (Custom opaque industrial colors available) |
Hardness (Shore A) | 75±5A (Specifically formulated for maximum rigidity) |
Operating Temperature | -60°C to 200°C (-76°F to 392°F) |
Certifications | FDA, LFGB, RoHS, REACH |
This is the definitive solution for the most demanding scenarios:
Heavy Industrial Machinery: High-pressure hydraulic and pneumatic lines, high-pressure coolant systems, and critical fluid transfer in steel mills, foundries, and manufacturing plants.
Chemical Processing & Transfer: Ideal for safely conveying highly corrosive or reactive chemicals under significant pressure, where a leak would be catastrophic.
High-Pressure Pumping & Dosing Systems: The ultimate choice for pump discharge lines and systems prone to intense pressure pulsations (water hammer).
Specialized Equipment & OEM Builds: For manufacturers of robust, long-life equipment where component failure is not an option, such as in mining, construction, or agricultural machinery.
Protective Conduit: Provides unparalleled physical protection for critical components in high-traffic or high-impact industrial zones.
Forge your competitive edge with components built to a higher standard. As a leading Chinese OEM/ODM silicone hose factory, JINAN CHENSHENG specializes in engineering and manufacturing high-performance silicone solutions that solve our clients' toughest challenges.
The JINAN CHENSHENG Advantage:
Engineering for Extremes: We don't just sell tubing; we engineer solutions. We thrive on developing custom compounds and profiles for extreme pressure, temperature, and physical stress.
Direct Manufacturing Partnership: Gain a powerful strategic advantage by sourcing directly from the factory. Benefit from significant cost savings, faster lead times, and a direct line of communication with our engineering team.
Unrivaled Customization Authority: We control the entire manufacturing process, giving you the power to specify exact dimensions, hardness, color, branding, and lengths to create a truly bespoke component.
A Foundation of Trust and Quality: Our commitment to quality is absolute. With an ISO-certified management system, we deliver consistent, reliable products that empower your brand and protect your reputation.
Challenge us with your most extreme application. Contact JINAN CHENSHENG to discuss your requirements and receive a factory-direct quote for a tubing solution built to endure.
This product is sold by the meter and will be supplied as one continuous length.
Critical Note: This is an extreme-duty, semi-rigid tube with very limited flexibility. It is specifically engineered for maximum structural strength, pressure containment, and crush resistance. It is not suitable for applications requiring tight bends or high flexibility.
