10x14mm
Custom
Product Description
When standard tubing isn't tough enough for the job, our 10x14mm heavy-duty silicone tube rises to the challenge. Featuring a substantial 2mm thick wall, this tubing is engineered from the ground up for superior strength, pressure stability, and longevity. It is the definitive choice for industrial, laboratory, and mechanical applications where failure is not an option.
Superior Durability & Toughness: The robust 2mm wall provides exceptional resistance to abrasion, tearing, and physical impact, ensuring a long and reliable service life even in high-traffic or harsh industrial environments.
Enhanced Pressure & Vacuum Stability: Uniquely designed to withstand moderate internal pressure without swelling and to resist collapsing under light-to-moderate vacuum, making it ideal for vacuum pumps, fluid power, and forced-flow systems.
Virtually Kink-Proof Performance: The thick-walled construction offers outstanding structural rigidity, preventing kinking and flow restrictions even when routed around tight bends, guaranteeing consistent throughput.
Secure, Leak-Proof Sealing: The substantial wall thickness provides a larger, more stable surface area for hose clamps and fittings to grip, creating exceptionally secure, leak-free connections that you can trust.
Premium Purity for Demanding Jobs: Despite its toughness, this tube is made from 100% platinum-cured, medical-grade silicone. It remains non-toxic, odorless, and fully compliant with FDA and LFGB standards, safe for even the most sensitive applications.

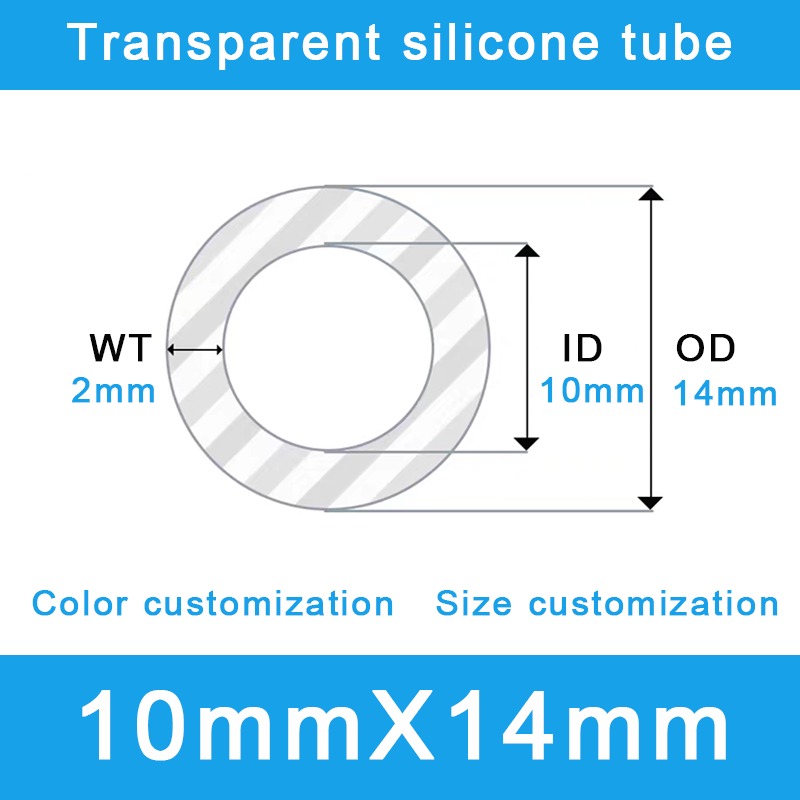

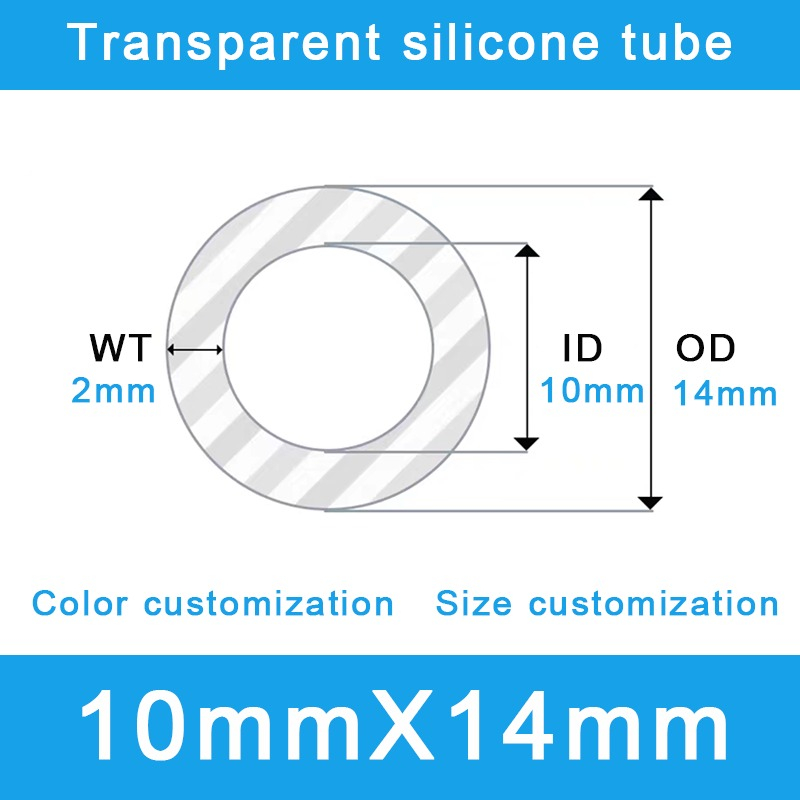

Parameter | Specification |
Inner Diameter (ID) | 10 mm |
Outer Diameter (OD) | 14 mm |
Wall Thickness | 2.0 mm |
Material Compound | Platinum-Cured Silicone |
Color | Standard High-Clarity Transparent (Full custom colors available) |
Hardness (Shore A) | 70±5A (Engineered for rigidity and durability) |
Temperature Range | -60°C to 200°C (-76°F to 392°F) |
Compliance | FDA, LFGB, RoHS, REACH |
Built to excel where other tubes fail:
Industrial Machinery & Equipment: The ultimate choice for coolant lines, low-pressure hydraulic/pneumatic controls, chemical transfer, and protective sleeving for cables in demanding factory settings.
Laboratory & Vacuum Systems: Perfectly suited for connecting vacuum pumps, running vacuum lines for filtration or aspiration, and handling fluids under moderate pressure.
Automotive & Performance: An excellent material for durable engine bay vacuum lines, coolant overflow tubing, and protecting critical wiring from heat, abrasion, and vibration.
Heavy-Duty Food & Beverage: Ideal for high-throughput transfer lines, viscous product handling, and pump applications where a sturdy, kink-free hose is essential.
Robotics & Automation: Provides a durable and reliable pathway for pneumatic lines and fluid delivery on moving mechanical arms and automated systems.
Empower your products with components built to last. JINAN CHENSHENG is a premier Chinese OEM/ODM manufacturer specializing in custom-engineered silicone solutions. We partner directly with businesses worldwide to deliver robust, high-quality components that enhance performance and reliability.
Why Partner with JINAN CHENSHENG?
Direct-from-Factory Expertise: Collaborate directly with our engineers to design and produce tubing perfectly matched to your equipment's demands. Cut out the middleman and access true manufacturing power.
Unmatched Customization Capabilities: Your specifications are our command. We can precisely control ID, OD, wall thickness, hardness, color, material compounds, and add custom printing to create your ideal component.
Built for Performance, Priced for Volume: Leverage our advanced manufacturing processes and economies of scale to receive premium, heavy-duty components at highly competitive wholesale prices.
A Culture of Quality: With ISO-certified facilities and stringent quality control at every step, we guarantee that every product leaving our factory meets the highest standards of consistency and performance.
Build with confidence. Build with strength. Contact JINAN CHENSHENG today to request a sample or get a factory-direct quote for your next project.
This product is sold by the meter and is supplied in continuous lengths.
This tubing is specifically designed for enhanced durability and to withstand moderate pressure and vacuum conditions. For high-pressure applications, please inquire about our specialized reinforced silicone hose options.
