Ultra-Flexible Silicone Tubing - 10mm ID x 12mm OD The Ultimate Choice for High Flow and Easy Routing
 |
Experience maximum flexibility and flow with JINAN CHENSHENG's 10mm ID x 12mm OD silicone tubing. The supple 1mm wall allows for effortless routing in tight spaces, while the large bore ensures high-volume transfer. Ideal for food-grade, lab, and general-purpose use. As a direct China OEM manufacturer, we offer competitive wholesale pricing and full customization.
-
10x12mm
-
Custom
Product Description
When your application demands unrestricted flow and the ability to navigate complex pathways, our 10x12mm ultra-flexible silicone tubing is the definitive answer. Engineered with a slim, highly pliable 1mm wall and a generous 10mm inner diameter, this tube prioritizes maximum flexibility and high-volume transfer above all else, making it the perfect workhorse for a vast range of general-purpose and sensitive applications.
Core Advantages:
Exceptional Pliability: Effortlessly bend and route this tube around sharp corners and through confined spaces. Its outstanding flexibility dramatically simplifies installation and reduces the need for additional elbow fittings.
High-Volume, Unrestricted Flow: The large 10mm bore is designed to move fluids and gases efficiently, minimizing flow resistance and maximizing throughput for your system.
Crystal-Clear Visual Monitoring: The thin, transparent wall offers exceptional optical clarity, allowing for easy, at-a-glance confirmation of flow, color, and cleanliness of the fluid inside.
Lightweight and Easy to Handle: Its minimal wall thickness results in a lightweight profile, making it easy to manage, cut, and install, especially in long-run applications or on delicate equipment.
Certified Purity for Sensitive Contact: Made from 100% platinum-cured, medical-grade silicone. It is completely non-toxic, odorless, and meets stringent FDA and LFGB standards, ensuring it is perfectly safe for food, beverage, and laboratory use.

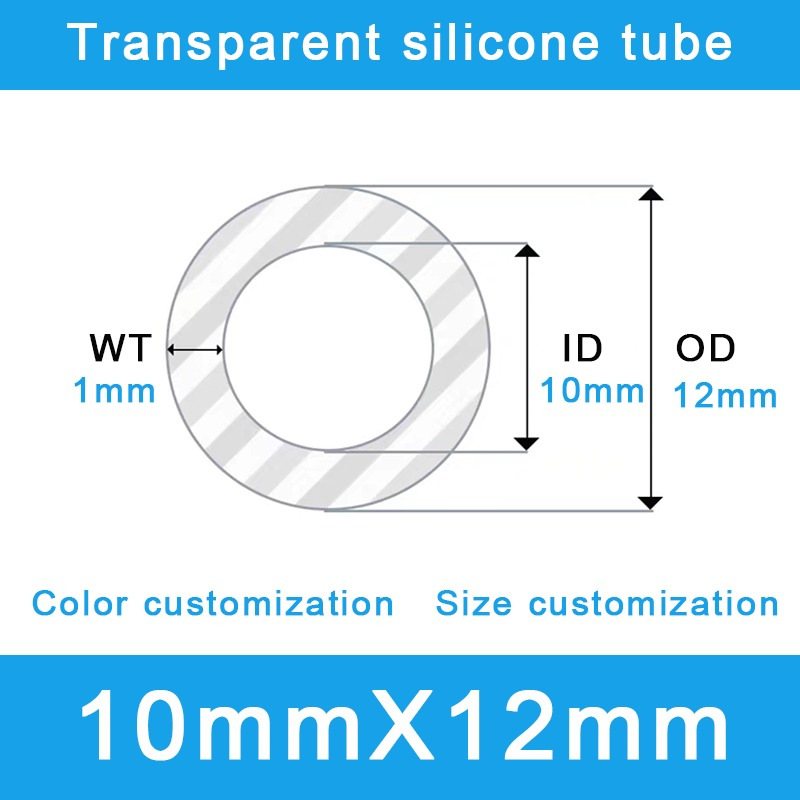

Technical Specifications:
Parameter | Specification |
Inner Diameter (ID) | 10 mm |
Outer Diameter (OD) | 12 mm |
Wall Thickness | 1.0 mm |
Material Compound | Platinum-Cured Silicone |
Color | Standard Crystal-Clear Transparent (Full custom colors available) |
Hardness (Shore A) | 60±5A (Optimized for flexibility) |
Temperature Range | -60°C to 200°C (-76°F to 392°F) |
Compliance | FDA, LFGB, RoHS, REACH |
Prime Applications:
This versatile tube excels in low-pressure environments where flexibility is key:
Food & Beverage Dispensing: An ideal choice for beverage lines, water transfer, dairy processing, and other food-grade applications requiring easy cleaning and high flexibility.
Laboratory & Research: Perfect for general-purpose fluid transfer, connecting glassware, and use with light-duty peristaltic pumps where high flow is desired.
Aquaponics, Aquariums & Hydroponics: Easily route water and nutrient lines for complex circulation systems, with the added benefit of clear visual inspection.
Cable Management & Sleeving: Provides a soft, non-abrasive, and electrically insulating sheath for organizing and protecting delicate wires and cables.
Light-Duty Industrial Transfer: Suitable for low-pressure air lines, drainage tubes, and fluid transfer where high pressure resistance is not a requirement.
JINAN CHENSHENG: Your Direct Partner for Custom Silicone Solutions
Simplify your supply chain and elevate your product quality by partnering directly with the source. JINAN CHENSHENG is a premier Chinese OEM/ODM manufacturer dedicated to providing world-class, custom-engineered silicone components. We empower businesses globally by transforming their concepts into high-quality, production-ready realities.
Why JINAN CHENSHENG is Your Strategic Advantage:
From Prototype to Mass Production: We support you at every stage, from initial design and rapid prototyping to full-scale, cost-effective manufacturing.
Simplify Your Procurement: Sourcing directly from our factory eliminates unnecessary costs and communication delays, giving you a leaner, more responsive supply chain.
Total Customization Control: Your vision is our blueprint. We offer complete control over dimensions, hardness, color, printing, and specialized material properties to perfectly match your application's needs.
Unwavering Commitment to Quality: Our ISO-certified manufacturing processes and rigorous quality control ensure that every meter of tubing we produce meets your exact specifications and the highest global standards.
Let's build a better product, together. Contact JINAN CHENSHENG today to start a conversation with our engineers and get a competitive factory-direct quotation.
Handling & Application Note:
This product is sold by the meter and is supplied in continuous lengths.
This tube is specifically designed for low-pressure applications. Due to its thin wall and high flexibility, it is not recommended for use in pressure or vacuum systems.
