14x16mm
Custom
Product Description
When your design demands maximum fluid throughput and the ability to navigate tight corners, our 14x16mm ultra-flexible silicone tube is the definitive answer. Engineered with a slim 1mm wall, this tube prioritizes agility and high-volume transfer above all else, making complex routing simple and efficient for your low-pressure applications.
Unmatched Flexibility: Its 1mm wall design provides exceptional flexibility, allowing it to be easily routed around components, through tight chassis holes, and along complex paths without strain. It is the perfect choice for dynamic or intricate setups.
Maximum Flow Path: The wide, unobstructed 14mm inner diameter is built for one purpose: moving large volumes of liquid or air quickly and efficiently. It minimizes flow resistance, making it ideal for high-volume, low-pressure transfer and drainage.
Extremely Lightweight: The thin-wall construction results in a significantly lighter tube compared to standard or heavy-duty options, reducing overall system weight and making it easier to handle and install, especially over long distances.
Superior Clarity for Monitoring: Produced from high-purity, platinum-cured silicone, this tube offers excellent transparency, allowing for easy visual confirmation of flow, detection of air bubbles, and monitoring of fluid condition.
Certified Purity for Sensitive Applications: Despite its agile design, this tube meets stringent FDA and LFGB standards. It is completely non-toxic, odorless, and tasteless, ensuring the integrity of your process in food & beverage, medical, and laboratory environments.

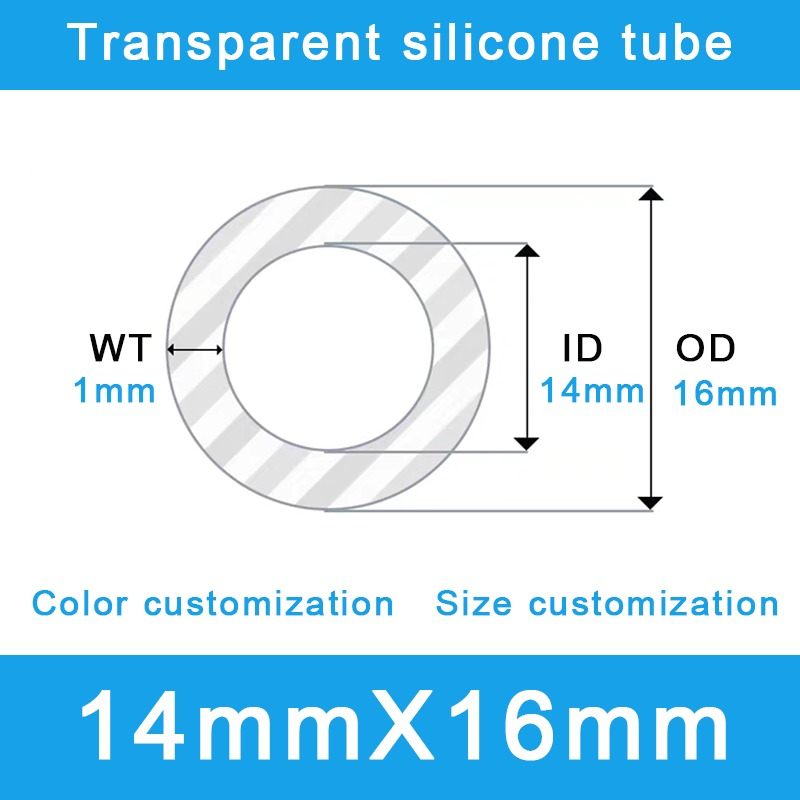

Parameter | Specification |
Inner Diameter (ID) | 14 mm |
Outer Diameter (OD) | 16 mm |
Wall Thickness | 1 mm |
Material Compound | 100% Platinum-Cured Silicone |
Color | Standard High-Clarity Transparent (Full custom colors available) |
Hardness (Shore A) | 60±5A (Optimized for flexibility) |
Temperature Range | -60°C to 200°C (-76°F to 392°F) |
Compliance | FDA, LFGB, RoHS, REACH |
Perfect for applications where flexibility and flow are more critical than pressure handling:
Large Peristaltic Pumps: The excellent flexibility and durable material make it a prime choice for high-volume peristaltic pump applications that require a large bore.
Low-Pressure Fluid Transfer & Drainage: Ideal for gravity-fed systems, overflow lines, and transferring large volumes of liquid where there is no significant back-pressure.
Aquarium & Hydroponics Systems: Perfect for connecting filters, pumps, and water features, allowing for easy, customized routing in and around tanks and grow systems.
Prototyping & R&D Labs: An essential, versatile tubing for quickly setting up and modifying experimental fluidic systems.
Light-Duty Protective Sleeving: Use to bundle and protect delicate wire harnesses or fiber optics from dust and moisture without adding significant weight or rigidity.
Master your fluid transfer systems with components designed for performance and adaptability. JINAN CHENSHENG is a premier Chinese OEM/ODM manufacturer, delivering specialized silicone solutions that empower innovation across industries.
The JINAN CHENSHENG Advantage:
Factory-Direct Agility & Pricing: Source high-performance, flexible tubing directly from the factory floor, ensuring competitive pricing and rapid response to your needs.
Tailored to Your Vision: We are experts in customization. Whether you need a specific color for coding, a unique hardness for a pump, or a precise cut length, we deliver.
Unwavering Quality Control: Our ISO-certified manufacturing process guarantees that every meter of tubing is dimensionally accurate, free of defects, and meets the highest standards of purity.
Expert Application Support: Our engineering team is your resource. We help you navigate our vast product options to find or create the perfect solution for your specific fluid dynamic challenges.
Unlock new design possibilities. Choose flexibility. Choose flow. Contact JINAN CHENSHENG today for a wholesale quote and a sample of our most agile silicone tubing.
This product is sold by the meter and is supplied in a continuous length.
Pressure & Vacuum Warning: This tube is designed for low-pressure and non-vacuum applications only. Its thin, flexible wall is not suitable for pressure or suction, which may cause it to expand, burst, or collapse. For pressure or vacuum resistance, please select our heavy-duty tubing with a thicker wall (2mm or greater).
