13x19mm
Custom
Product Description
This is not just a tube; it's a structural component. Our 13x19mm silicone tube, with its colossal 3mm wall, represents the pinnacle of durability. Engineered for applications where failure is not an option, it provides unparalleled resistance to crushing, impact, and high pressure, functioning as both a conduit and a protective shield in the most demanding environments on earth.
Structural-Grade Integrity: With a 3mm thick wall, this tube behaves like a semi-rigid component. It can support weight, absorb significant impact, and maintain its profile under extreme external forces, making it an integral part of your assembly.
Virtually Crush-Proof: The immense wall thickness provides a level of crush resistance that is second to none for a non-reinforced tube. It is ideal for applications where it may be stepped on, run over, or subjected to high clamping forces.
Optimized for High Pressure: This tube is built to handle significant internal pressure and aggressive pressure cycling. Its resistance to expansion and bursting makes it a reliable choice for high-pressure dosing, transfer, and pneumatic systems.
The Ultimate Protective Armor: Use it as an impenetrable sleeve to shield critical cables, wires, and smaller hoses from abrasion, impact, heat, and chemical splash. It’s the definitive solution for industrial-grade protection.
Purity in an Unbreakable Package: Despite its fortress-like build, this tube is manufactured from 100% platinum-cured silicone, fully compliant with FDA and LFGB standards. It ensures absolute purity for food, pharmaceutical, and laboratory applications that also require extreme physical robustness.

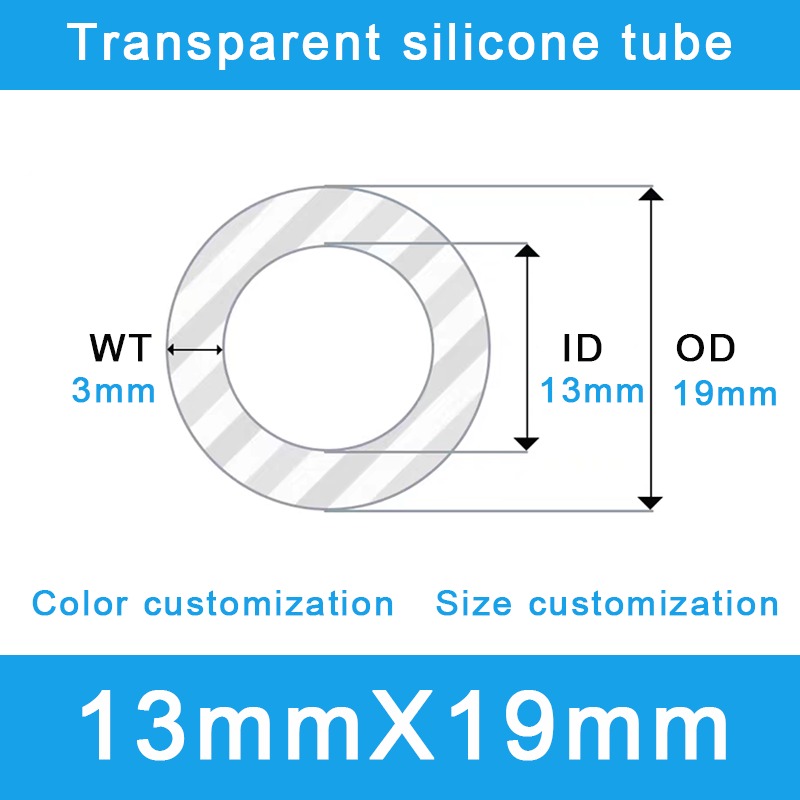

Attribute | Specification |
Inner Diameter (ID) | 13 mm |
Outer Diameter (OD) | 19 mm |
Wall Thickness | 3 mm |
Material Compound | 100% Platinum-Cured Silicone |
Color | Standard High-Clarity Transparent (Custom colors available) |
Hardness (Shore A) | 75±5A (Formulated for structural rigidity) |
Operating Temperature | -60°C to 200°C (-76°F to 392°F) |
Certifications | FDA, LFGB, RoHS, REACH |
Specifically designed for the most extreme use cases:
High-Pressure Chemical & Fluid Transfer: The ultimate choice for systems with high operating pressures or intense pressure spikes where reinforced hoses are not an option.
Protective Sleeving & Cable Conduits: Provides robust mechanical and thermal protection for electrical wiring, sensor cables, and hydraulic lines in heavy machinery, automotive, and factory environments.
Structural Components & Rollers: Can be used as low-friction rollers, bumpers, spacers, and structural supports in processing equipment and mechanical assemblies.
Mining, Construction & Agriculture: Ideal for fluid lines on heavy equipment where exposure to abrasion, impact, and harsh weather is constant.
High-Impact Drainage & Waste Lines: A fit-and-forget solution for gravity-fed lines in high-traffic areas where durability is the primary concern.
When your project demands the strongest, most reliable components, partner with a manufacturer that understands extreme engineering. JINAN CHENSHENG is a world-class Chinese OEM/ODM manufacturer that delivers silicone solutions built to withstand the impossible.
The JINAN CHENSHENG Commitment:
Unbeatable Factory-Direct Value: By eliminating intermediaries, we provide access to extreme-duty components at a cost that strengthens your bottom line.
Precision Customization: Your challenge is our blueprint. We can customize hardness, color, length, and even formulate specialized compounds to meet your exact performance criteria.
Guaranteed Quality & Consistency: Our rigorous, ISO-certified quality control ensures every millimeter of our tubing is flawless, dimensionally accurate, and ready to perform under pressure.
Collaborative Engineering Support: Our expert team is ready to partner with you, offering insights and technical guidance to ensure you select or create the perfect component for your most challenging application.
Stop compromising. Start reinforcing. Contact JINAN CHENSHENG for a wholesale inquiry and to experience the pinnacle of silicone tube engineering.
This product is sold by the meter and is supplied in a continuous length.
Flexibility Profile: This is a semi-rigid product designed for maximum strength and has very limited flexibility. It is not suitable for applications requiring tight bends or dynamic flexing. For flexible applications, please consider our tubes with 1.5mm or 2mm walls.
