13x15mm
Custom
Product Description
When your application demands high throughput and effortless routing, our 13x15mm silicone tube is the definitive answer. Engineered with a large 13mm bore and a slim 1mm wall, this tube is purpose-built to maximize flow capacity while maintaining superior flexibility, making complex installations simple and efficient.
Maximum Flow Capacity: The generous 13mm inner diameter significantly reduces flow resistance, allowing for rapid, high-volume transfer of liquids and gases. It's the perfect choice for applications where speed and volume are critical.
Exceptional Flexibility: Unlike thicker-walled alternatives, the supple 1mm wall gives this tube an excellent bend radius. It navigates tight corners and complex pathways with ease, reducing installation time and the need for elbow fittings.
Lightweight & Space-Efficient: The thin-wall design results in a remarkably lightweight tube that is easy to handle and install, especially over long distances. Its minimal 15mm outer diameter is ideal for routing through constrained spaces.
Crystal-Clear Visual Monitoring: Made from high-clarity, platinum-cured silicone, this tube offers complete transparency. Effortlessly monitor flow, check for air bubbles or blockages, and ensure process integrity at a glance.
Certified Purity for Sensitive Applications: Produced in our state-of-the-art facility, this tubing is 100% non-toxic, odorless, and tasteless. It fully complies with FDA and LFGB standards, ensuring it is safe for food, beverage, medical, and laboratory use.

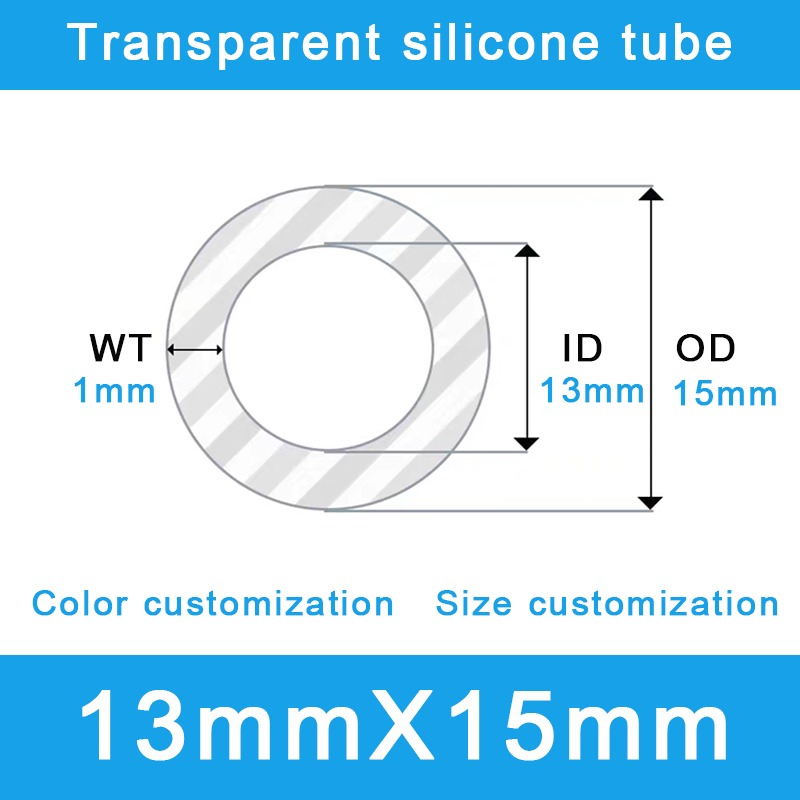

Parameter | Specification |
Inner Diameter (ID) | 13 mm |
Outer Diameter (OD) | 15 mm |
Wall Thickness | 1.0 mm |
Material Compound | 100% Platinum-Cured Silicone |
Color | Standard High-Clarity Transparent (Full custom colors available) |
Hardness (Shore A) | 60±5A (Balanced for flexibility and durability) |
Temperature Range | -60°C to 200°C (-76°F to 392°F) |
Compliance | FDA, LFGB, RoHS, REACH |
Perfect for when agility and flow rate are top priorities:
Beverage & Liquid Food Dispensing: Ideal for post-mix soda lines, water feeds for coffee machines, brewery transfer lines, and dairy processing where high flow and purity are essential.
Laboratory & Biotech: Transferring large volumes of media, buffers, and reagents between vessels or for connecting to lab equipment.
PC Water Cooling & Coolant Lines: Offers high flow for maximum cooling performance and the flexibility needed for clean, custom loop builds.
Lightweight Protective Sleeving: Provides a soft, flexible, and insulating cover for wire bundles, sensor leads, and smaller pneumatic lines.
Aquaponics & Hydroponics: A superb choice for main water distribution lines, connecting pumps to grow beds with flexible, chemically inert tubing.
Unlock your system's full potential with solutions engineered for performance. JINAN CHENSHENG is a specialist Chinese OEM/ODM manufacturer, providing custom silicone tubing that empowers industries to move fluids faster and more efficiently.
Why Choose JINAN CHENSHENG?
Factory-Direct Efficiency: By sourcing directly from us, you get premium, high-flow tubing at a price point that optimizes your budget and boosts your bottom line.
Customization is Standard: Need a different flexibility, color, or an exact length? We are built for customization. Our engineering team will work with you to create the perfect tube for your project.
Unwavering Quality Control: Our ISO-certified processes guarantee that every meter of tubing meets our high standards for dimensional accuracy, purity, and performance.
Expert Application Support: With years of experience, our team can help you select the right product and specifications to ensure your application runs smoothly and reliably.
Unleash your system's flow potential. Contact JINAN CHENSHENG today for a competitive factory quote and to request a sample of this highly flexible tubing.
This product is sold by the meter and is supplied in a continuous length.
Pressure & Kinking: This tube is designed for maximum flexibility and is best suited for low-pressure, gravity-fed, or open-ended discharge applications. Due to its thin 1mm wall, it is not recommended for high-pressure or vacuum (negative pressure) systems as it may be prone to kinking if bent too sharply.
